Instrument Panel — 2016 workshop reference 1334

Instrument Panel — original illustration 1, reference 1334Original colors & callouts · Select to enlarge

22. Disconnect the electrical connectors and detach the connector push pin at the RH lower cowl.

Instrument Panel — original illustration 2, reference 1334Original colors & callouts · Select to enlarge

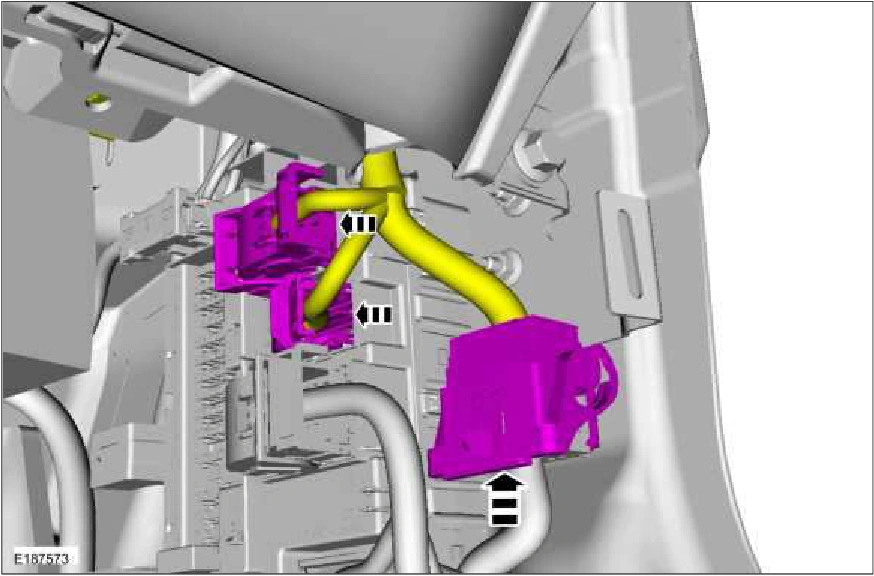

23. Disconnect the electrical connectors behind the glove compartment.

Source reference 1334
