Instrument Panel

501-12 Instrument Panel and Console

2016 MustangReference 1,337 / 6,619HTML edition
← Chapter contentsProcedure contents

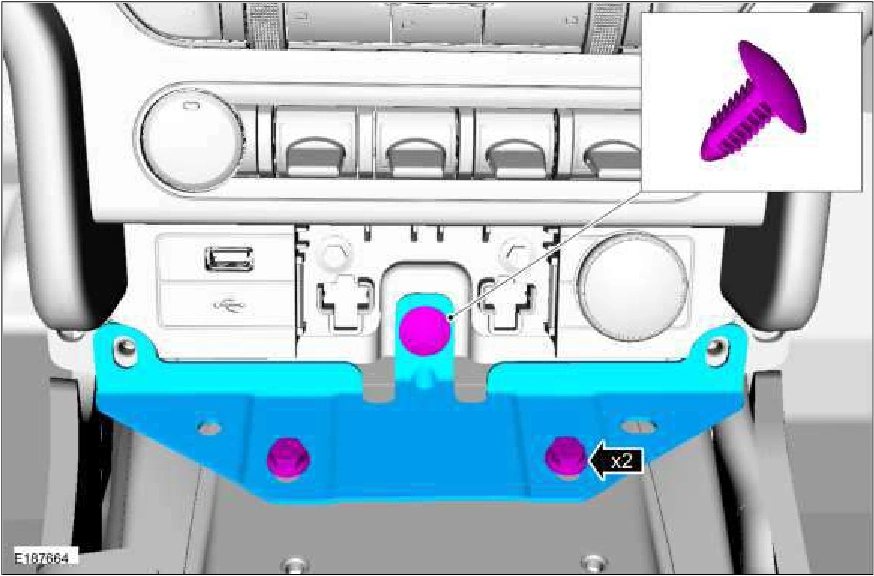

Instrument Panel — original illustration 1, reference 1337Original colors & callouts · Select to enlarge

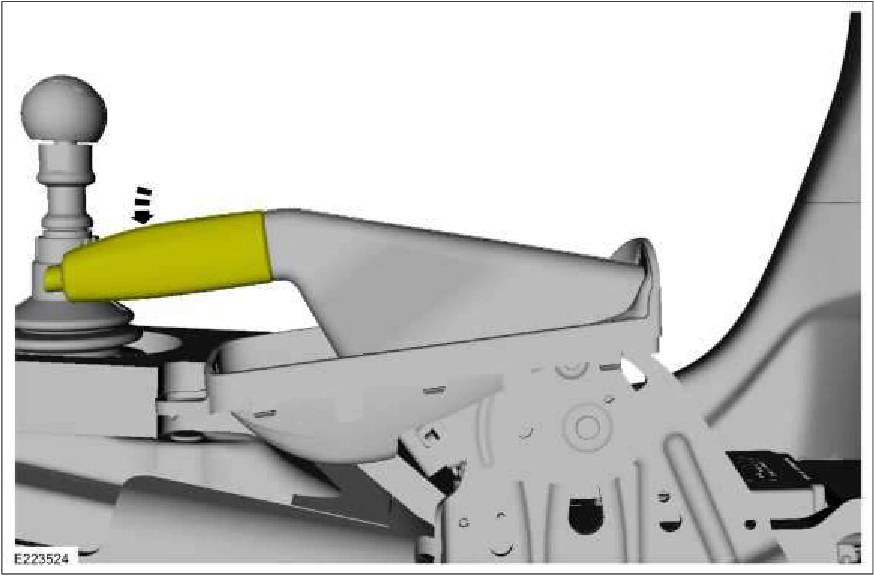

28. Release the emergency brake.

Instrument Panel — original illustration 2, reference 1337Original colors & callouts · Select to enlarge

29. NOTE: The A-pillar to in-vehicle cross beam instrument panel bolts cannot be removed from the A-pillar with the door attached.

Loosen the RH A-pillar to in-vehicle cross beam instrument panel bolts and slide the bolts outward as far as possible. Torque : 17 lb.ft (22.5 Nm)
