Instrument Panel

501-12 Instrument Panel and Console

2016 MustangReference 1,338 / 6,619HTML edition
← Chapter contentsProcedure contents
Instrument Panel — original illustration 1, reference 1338Original colors & callouts · Select to enlarge

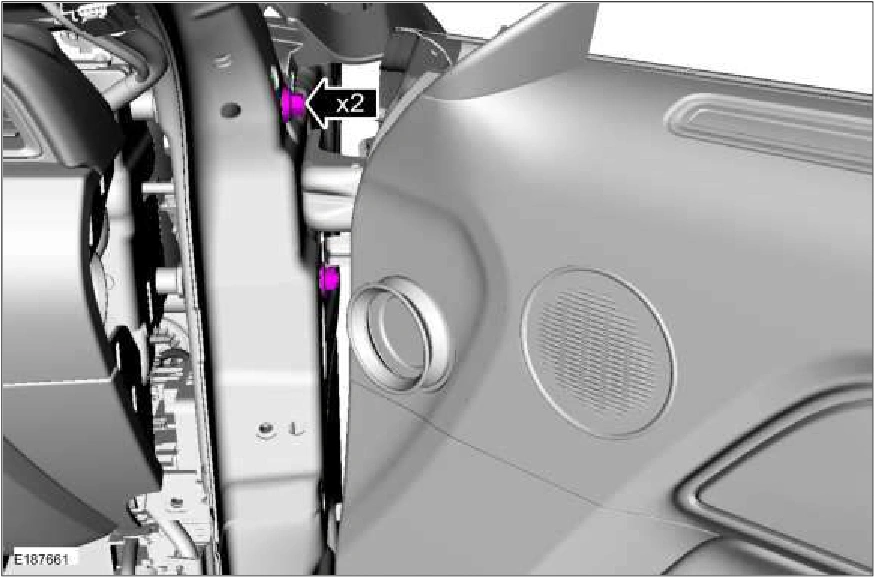

30. NOTE: The A-pillar to in-vehicle cross beam instrument panel bolts cannot be removed from the A-pillar with the door attached.

Completely loosen the LH A-pillar to in-vehicle cross beam instrument panel bolts and slide the bolts outward as far as possible. Torque : 17 lb.ft (22.5 Nm)

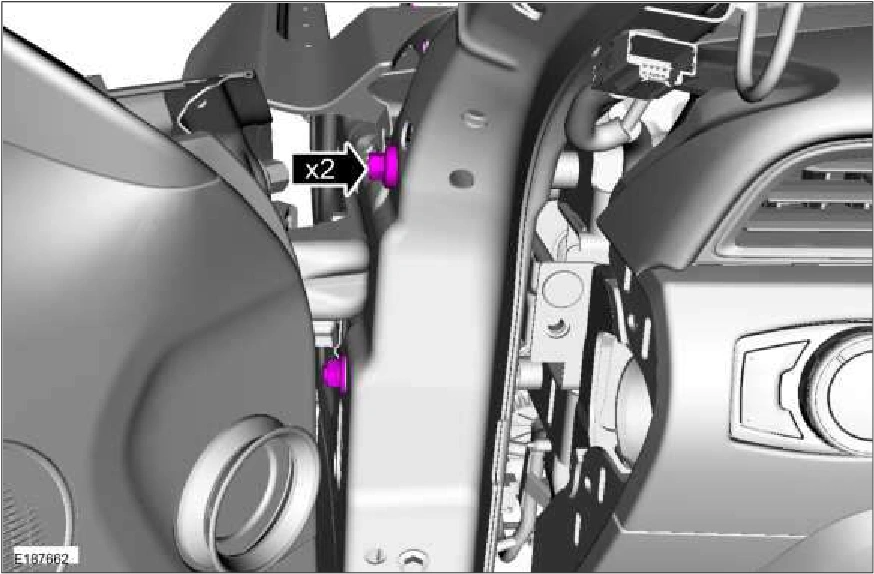

Instrument Panel — original illustration 2, reference 1338Original colors & callouts · Select to enlarge

31. NOTE: On both sides.

Disconnect the A-pillar electrical connectors and detach the harness retainers.

Source reference 1338
