Instrument Panel

501-12 Instrument Panel and Console

2016 MustangReference 1,340 / 6,619HTML edition
← Chapter contentsProcedure contents

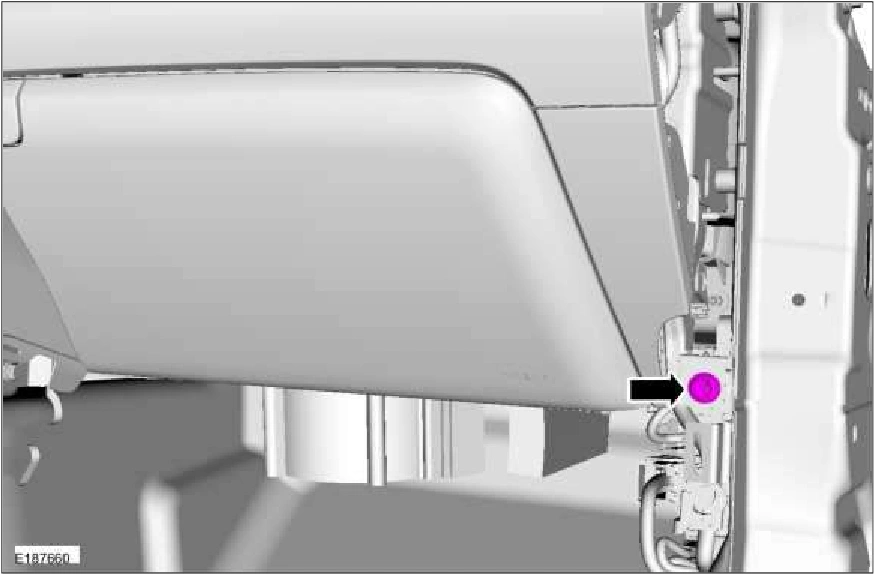

Instrument Panel — original illustration 1, reference 1340Original colors & callouts · Select to enlarge

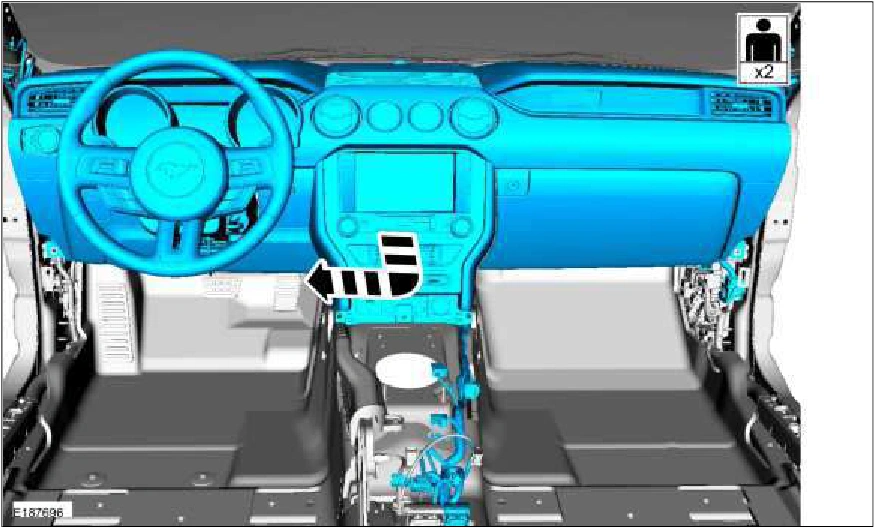

34. NOTE: Seats shown removed for clarity.

NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out this step.

NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.

NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

Rotate the instrument panel face down and remove through the LH front door opening.

Instrument Panel — original illustration 2, reference 1340Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 1340
