501-12 Instrument Panel and Console 2016 Mustang

Removal and Installation Procedure revision date: 05/15/2015

Instrument Panel Center Finish Panel

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

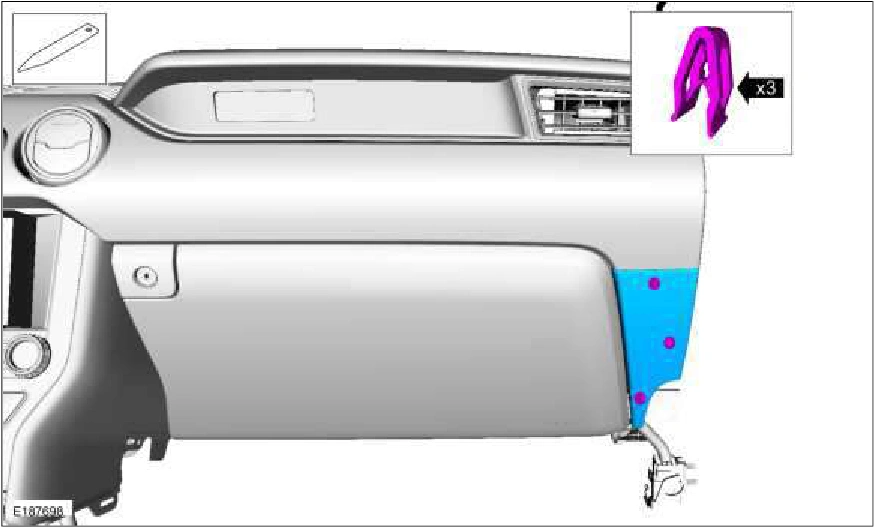

1. Release the clips and remove RH instrument panel trim panel. Use the General Equipment: Interior Trim Remover

Instrument Panel Center Finish Panel — original illustration 1, reference 1342Original colors & callouts · Select to enlarge

2. NOTE: Instrument panel center finish panel with optional ICM shown.

Release the clips and remove the instrument panel center finish panel.

Disconnect the ICM electrical connector, if equipped. Use the General Equipment: Interior Trim Remover
