Instrument Panel Upper Section

501-12 Instrument Panel and Console 2016 Mustang

Removal and Installation Procedure revision date: 08/19/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

1. NOTE: Place the instrument panel on a suitable work surface that will allow the instrument panel to be rotated front to back without damaging the instrument panel.

Remove the instrument panel. Refer to: Instrument Panel (501-12 Instrument Panel and Console, Removal and Installation).

2. Remove the passenger knee airbag. Refer to: Passenger Knee Airbag (501-20B Supplemental Restraint System, Removal and Installation).

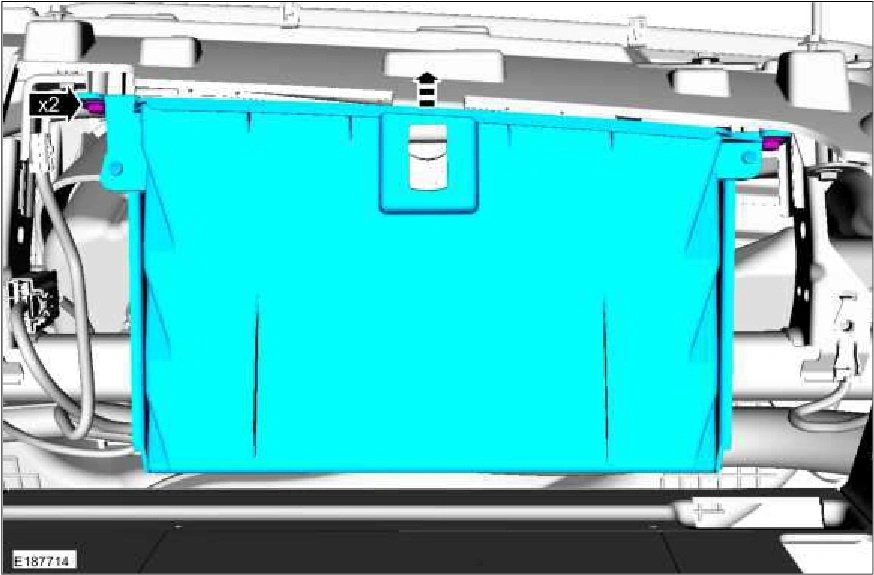

3. Remove the bolts and the glove compartment upper stowage bin.

Instrument Panel Upper Section — original illustration 1, reference 1344Original colors & callouts · Select to enlarge

4. Remove the bolts, release the clips and remove the RH instrument panel finish panel. Torque : 18 lb.in (2 Nm)

Source reference 1344
