Instrument Panel Upper Section — 2016 workshop reference 1346

Instrument Panel Upper Section — original illustration 1, reference 1346Original colors & callouts · Select to enlarge

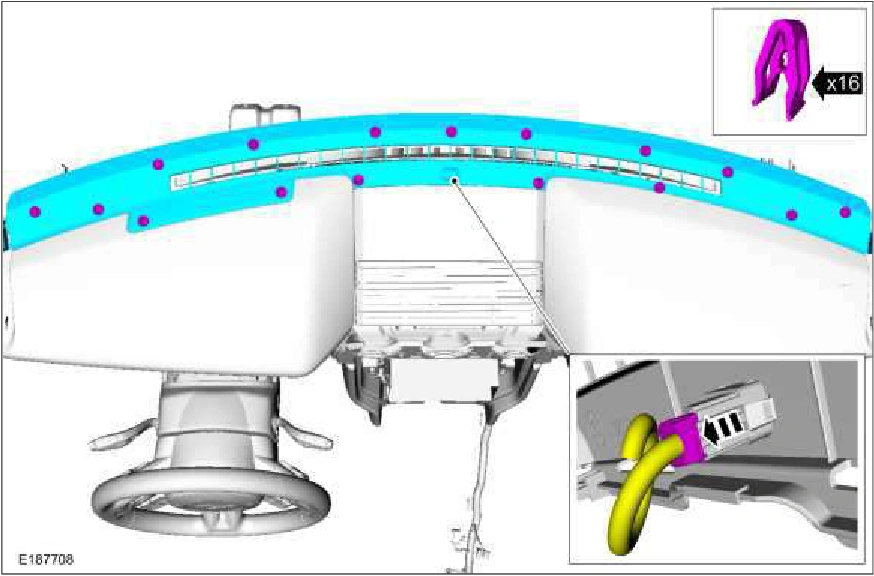

7. Release the clips and remove the defroster grille panel. Disconnect the electrical connector.

Instrument Panel Upper Section — original illustration 2, reference 1346Original colors & callouts · Select to enlarge

8. Release the clips and remove the instrument panel speaker grille.
