Instrument Panel Upper Section — 2016 workshop reference 1349

Instrument Panel Upper Section — original illustration 1, reference 1349Original colors & callouts · Select to enlarge

Vehicles with Touchscreen Display

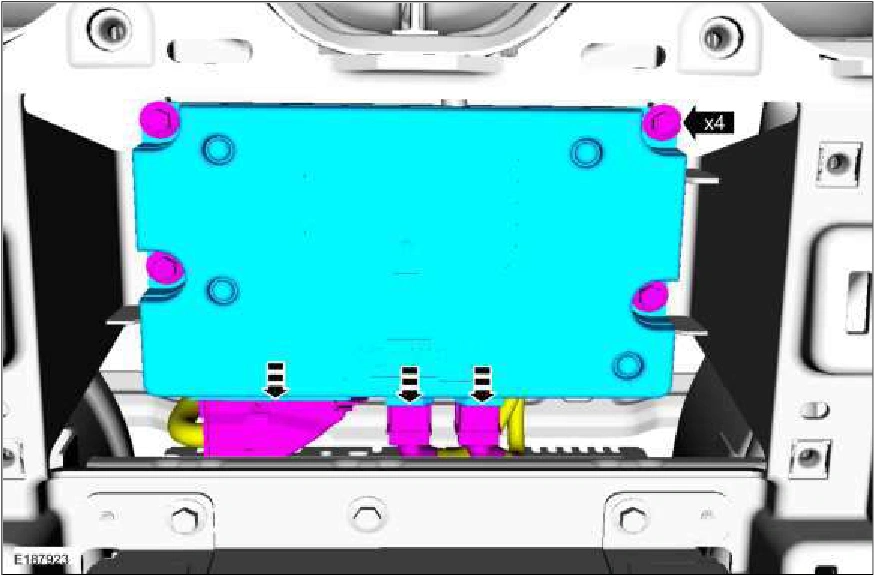

13. Remove the bolts and the FCIM.

Disconnect the electrical connectors. Torque : 22 lb.in (2.5 Nm)

Instrument Panel Upper Section — original illustration 2, reference 1349Original colors & callouts · Select to enlarge

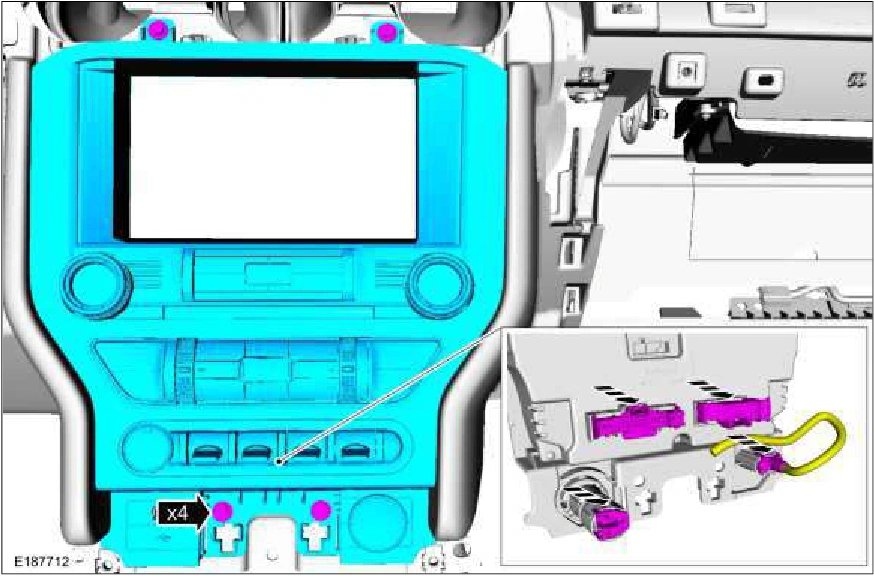

14. Remove the bolts and the FDIM.

Disconnect the electrical connectors. Torque : 22 lb.in (2.5 Nm)
