Instrument Panel Upper Section — 2016 workshop reference 1350

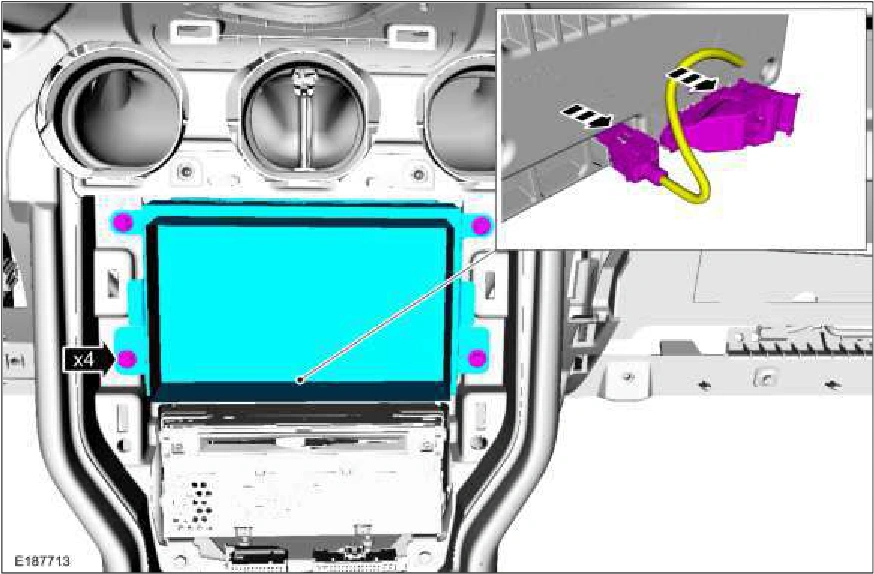

Instrument Panel Upper Section — original illustration 1, reference 1350Original colors & callouts · Select to enlarge

All vehicles

15. Remove the bolts and the ACM.

Disconnect the electrical connectors. Torque : 22 lb.in (2.5 Nm)

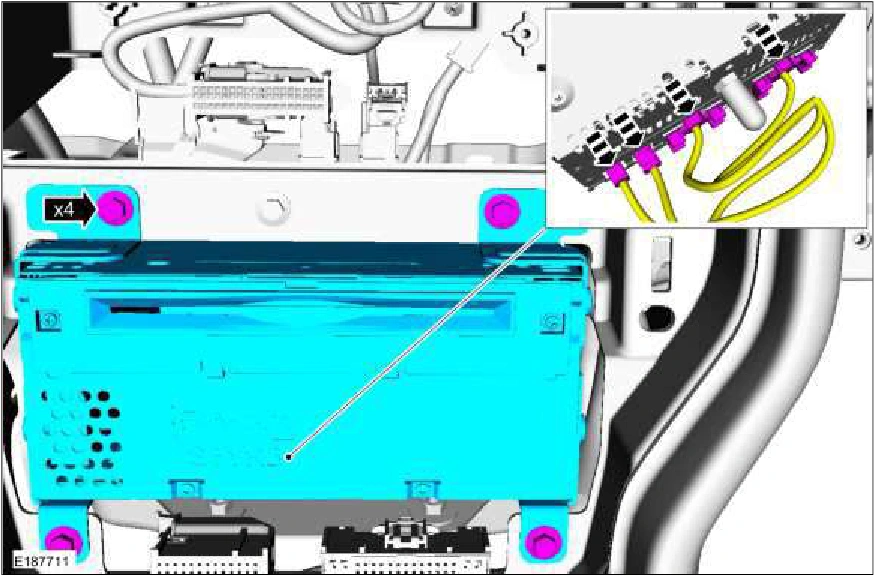

Instrument Panel Upper Section — original illustration 2, reference 1350Original colors & callouts · Select to enlarge

16. Remove the bolt, screw and the lower steering column shroud.

1. Torque : 22 lb.in (2.5 Nm)

2. Torque : 22 lb.in (2.5 Nm)

Source reference 1350
