Instrument Panel Upper Section

501-12 Instrument Panel and Console

2016 MustangReference 1,353 / 6,619HTML edition
← Chapter contentsProcedure contents

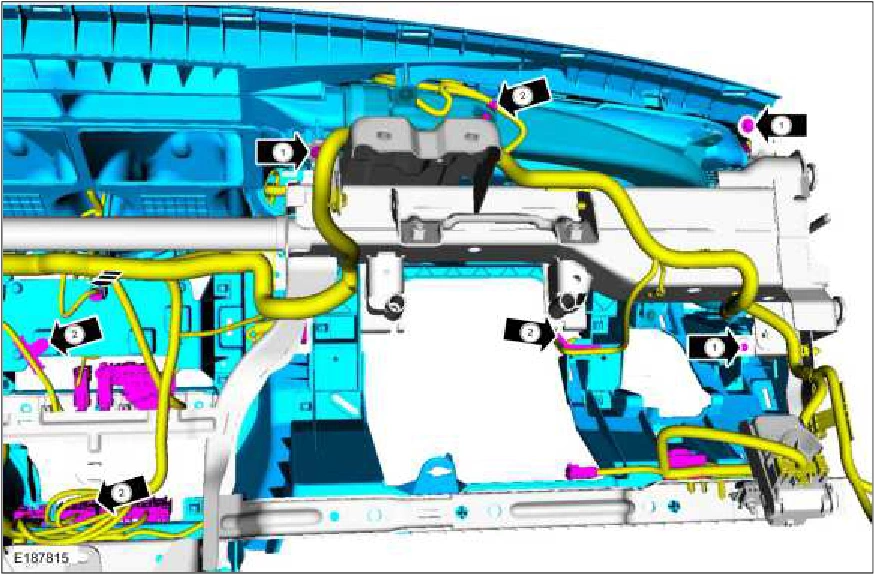

Instrument Panel Upper Section — original illustration 1, reference 1353Original colors & callouts · Select to enlarge

21. From the rear of the instrument panel position the electrical harness aside on the RH side.

1. Remove the instrument panel upper section to in-vehicle cross beam bolts. Torque : 22 lb.in (2.5 Nm)

2. Release the harness retainers.

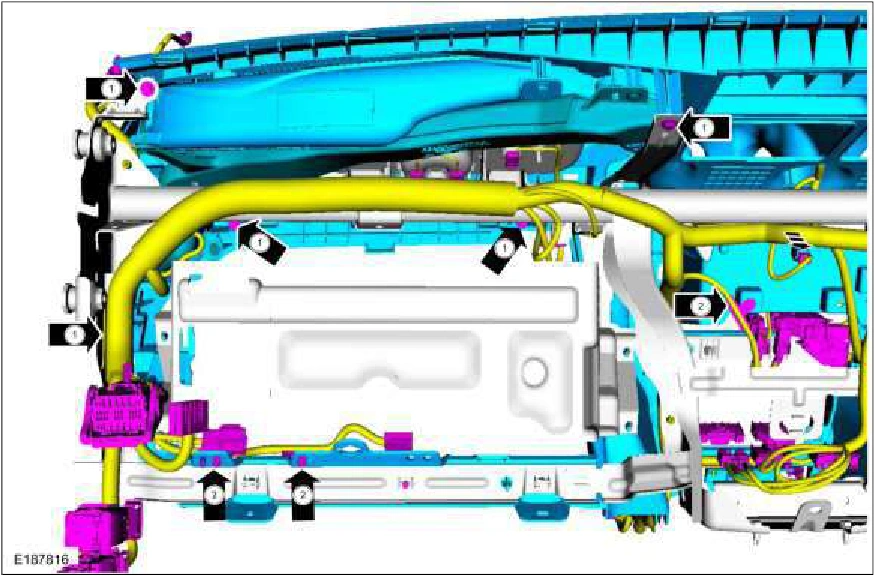

Instrument Panel Upper Section — original illustration 2, reference 1353Original colors & callouts · Select to enlarge

22. NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel upper section or damage to the components may occur.

From the front of the instrument panel position remove the 5 instrument panel upper section to in-vehicle cross beam bolts and remove the instrument panel upper section.
