501-12 Instrument Panel and Console 2016 Mustang

Removal and Installation Procedure revision date: 08/19/2015

Overhead Console

Base Part Number: 519A58

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

Coupe

1. Lower the headliner. Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation).

2. Release the clips, disconnect the electrical connectors and remove the overhead console. Use the General Equipment: Interior Trim Remover

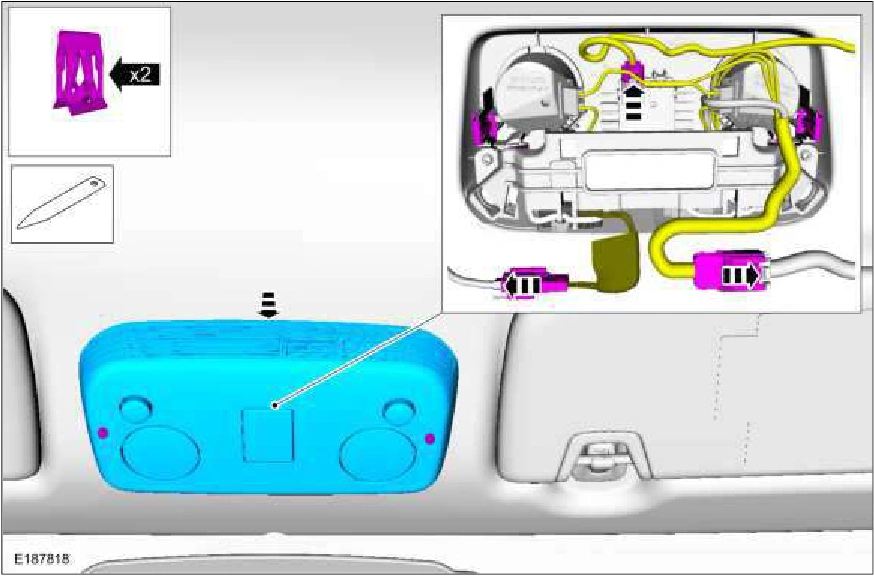

Overhead Console — original illustration 1, reference 1355Original colors & callouts · Select to enlarge

Convertible

3. Release the clips, disconnect the electrical connectors and remove the overhead console. Use the General Equipment: Interior Trim Remover

Source reference 1355
