Instrument Panel Upper Section — 2016 workshop reference 1351

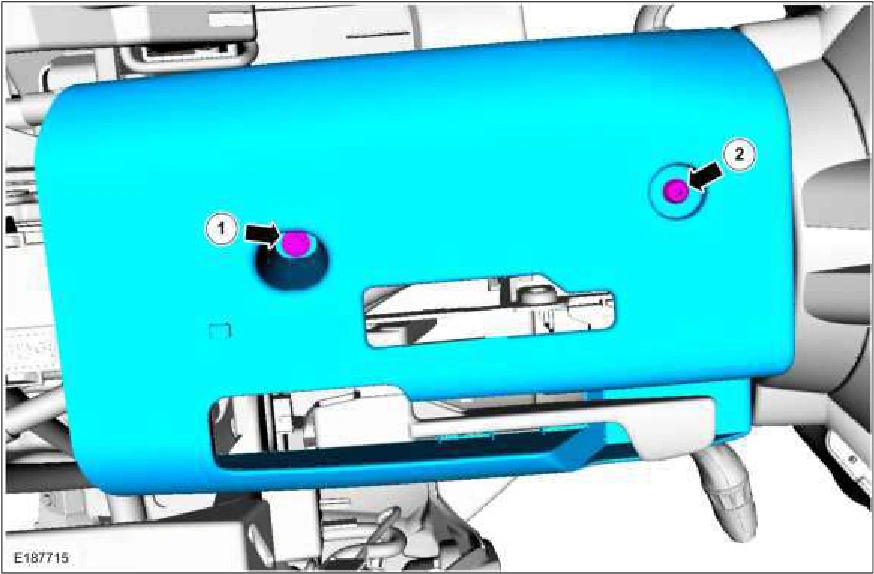

Instrument Panel Upper Section — original illustration 1, reference 1351Original colors & callouts · Select to enlarge

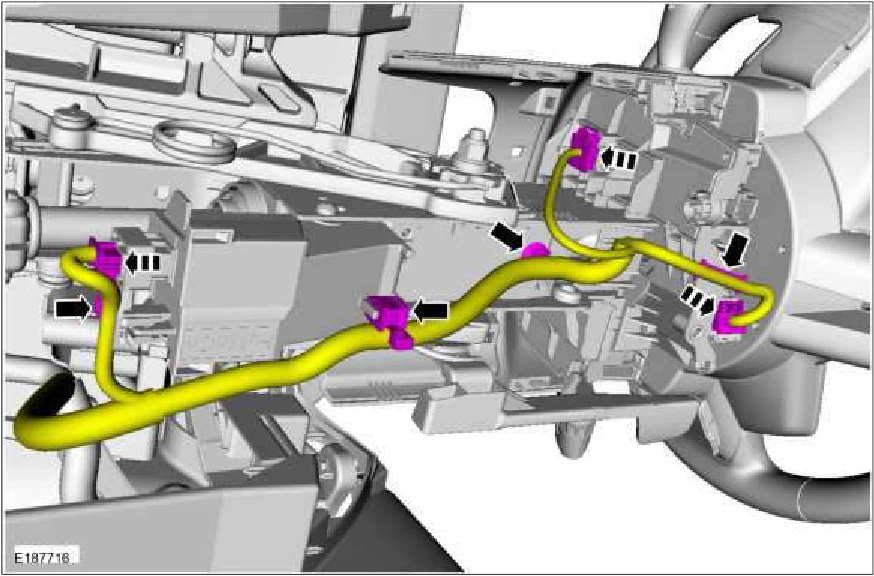

17. Disconnect the electrical harness, release the harness retainers and position the harness aside.

Instrument Panel Upper Section — original illustration 2, reference 1351Original colors & callouts · Select to enlarge

18. Remove the steering column.

1. Disconnect the electrical connector.

2. NOTE: The front and rear steering column bolts are not the same, note bolt location before installation.

Remove and discard the steering column bolts. Torque : 18 lb.ft (25 Nm)
