Instrument Panel Upper Section — 2016 workshop reference 1348

Instrument Panel Upper Section — original illustration 1, reference 1348Original colors & callouts · Select to enlarge

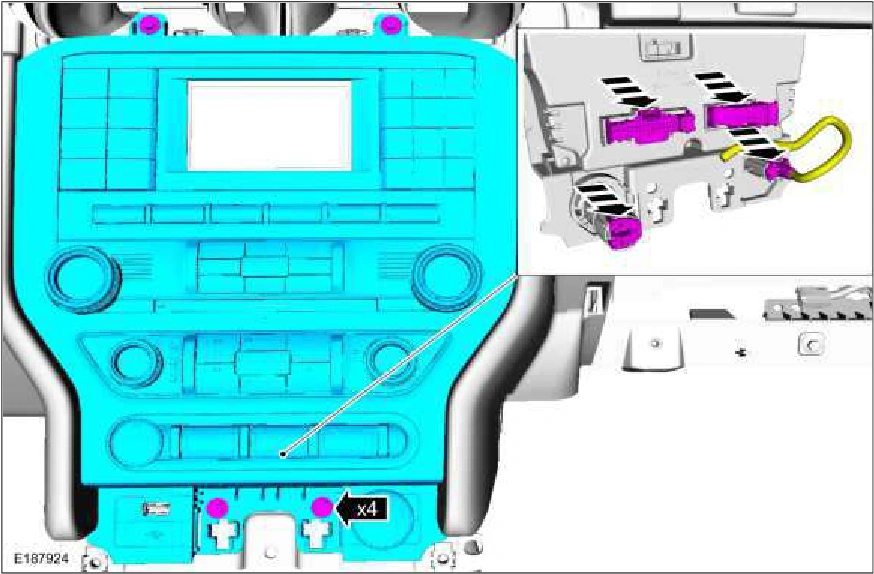

11. Remove the bolts and the FCDIM.

Disconnect the electrical connector.

Instrument Panel Upper Section — original illustration 2, reference 1348Original colors & callouts · Select to enlarge

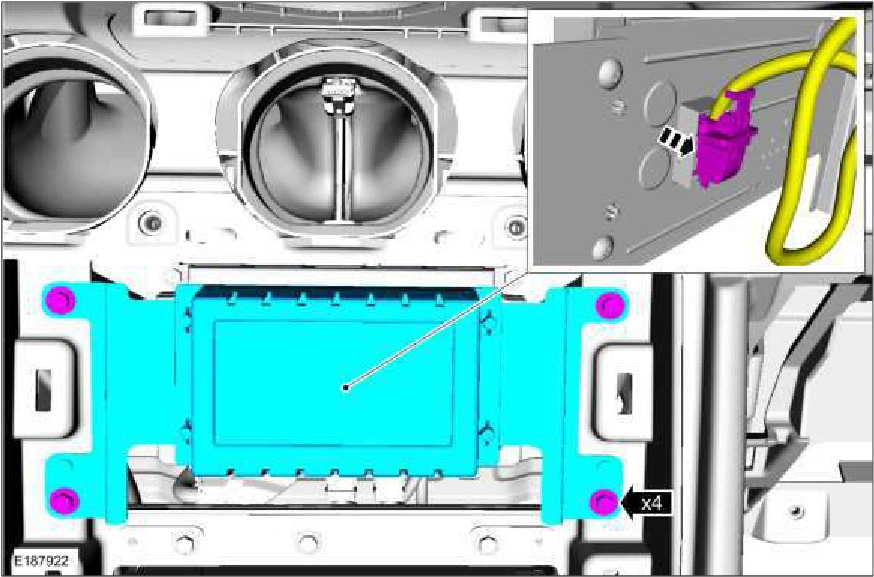

12. Remove the bolts and APIM.

Disconnect the electrical connectors. Torque : 13 lb.in (1.5 Nm)
