Instrument Panel Upper Section — 2016 workshop reference 1347

Instrument Panel Upper Section — original illustration 1, reference 1347Original colors & callouts · Select to enlarge

9. Remove the bolts and the instrument panel speaker. Disconnect the electrical connectors and release the harness retainer. Torque : 22 lb.in (2.5 Nm)

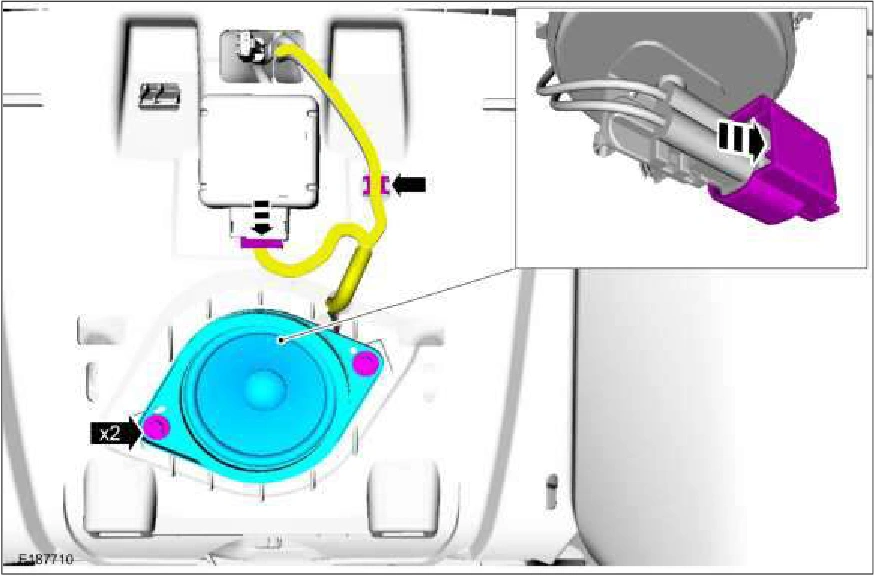

Instrument Panel Upper Section — original illustration 2, reference 1347Original colors & callouts · Select to enlarge

Vehicles with AM/FM/CD/SNYC

10. Remove the bolts and the FCIM.

Disconnect the electrical connectors.

Torque : 22 lb.in (2.5 Nm)

Source reference 1347
