Instrument Panel Upper Section — 2016 workshop reference 1345

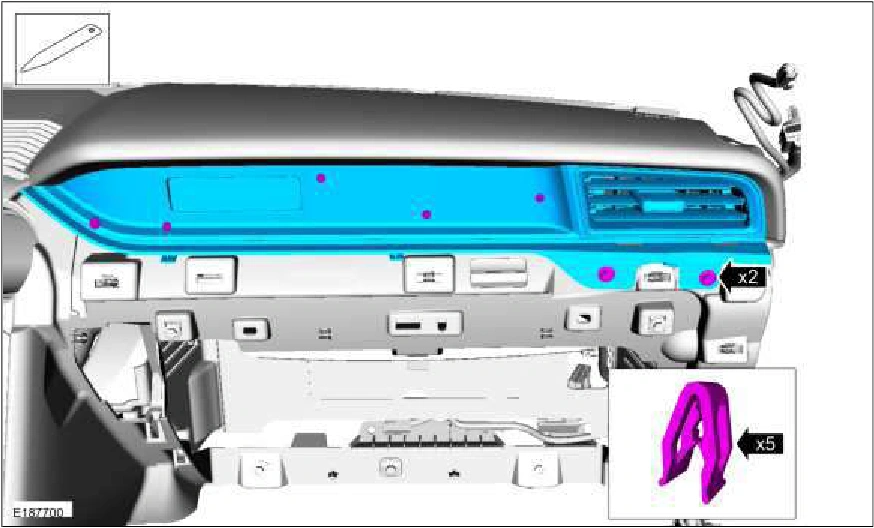

Instrument Panel Upper Section — original illustration 1, reference 1345Original colors & callouts · Select to enlarge

5. Remove the bolts, release the clips and remove the IPC trim panel. Detach the gap hider from the upper steering column trim cover. Torque : 22 lb.in (2.5 Nm)

Instrument Panel Upper Section — original illustration 2, reference 1345Original colors & callouts · Select to enlarge

6. Release the clips and remove the IPC. Disconnect the electrical connector and release the harness retainer.
