Instrument Panel — 2016 workshop reference 1336

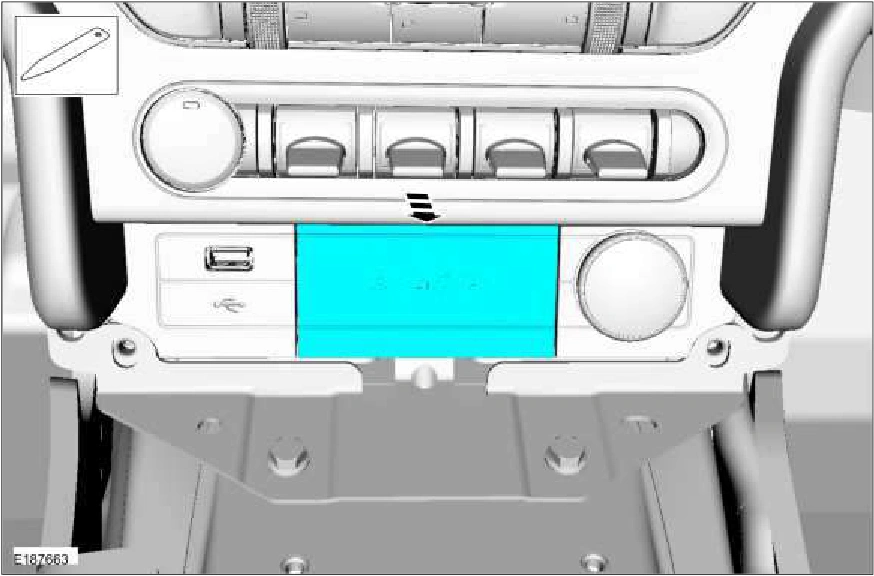

Instrument Panel — original illustration 1, reference 1336Original colors & callouts · Select to enlarge

26. Remove the trim cover. Use the General Equipment: Interior Trim Remover

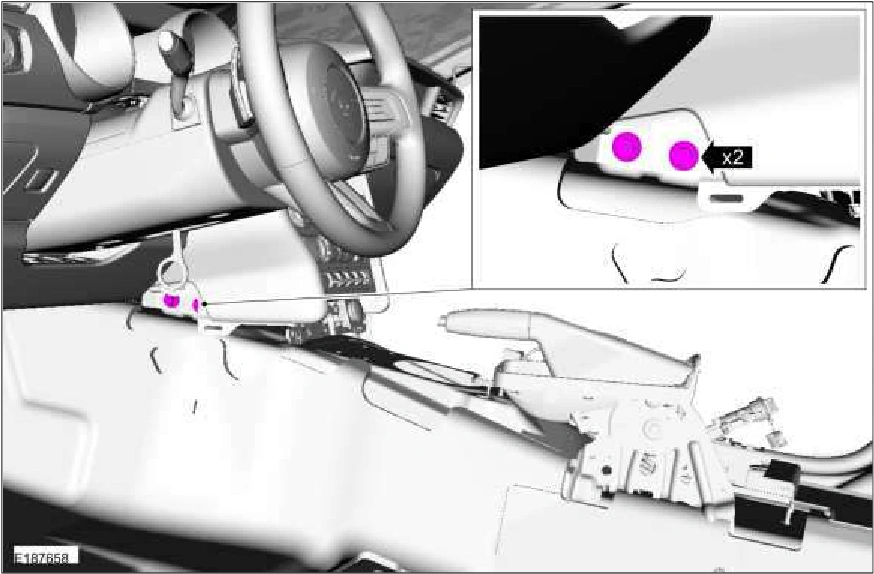

Instrument Panel — original illustration 2, reference 1336Original colors & callouts · Select to enlarge

27. Remove the 2 bolts the push pin and the instrument panel center bracket. Torque : 89 lb.in (10 Nm)
