Instrument Panel — 2016 workshop reference 1335

Instrument Panel — original illustration 1, reference 1335Original colors & callouts · Select to enlarge

24. Remove the RH center instrument panel bolts. Torque : 17 lb.ft (22.5 Nm)

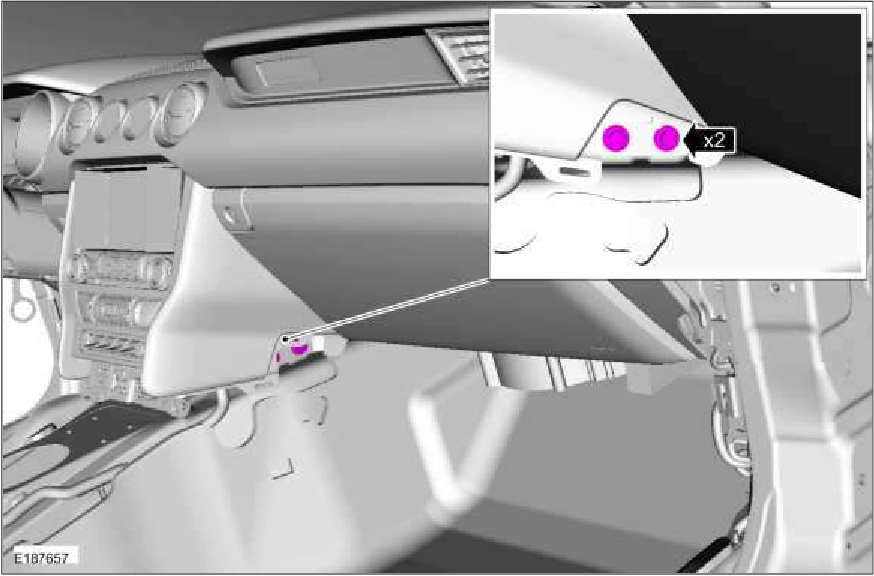

Instrument Panel — original illustration 2, reference 1335Original colors & callouts · Select to enlarge

25. Remove the LH center instrument panel bolts. Torque : 17 lb.ft (22.5 Nm)
