NOTE: Placing the Steering Column in the Tilt UP position will make shaft disconnection easier.

Remove and discard the upper steering column shaft-to-steering column bolt and the position aside the upper steering column shaft. Torque : 16 lb.ft (22 Nm)

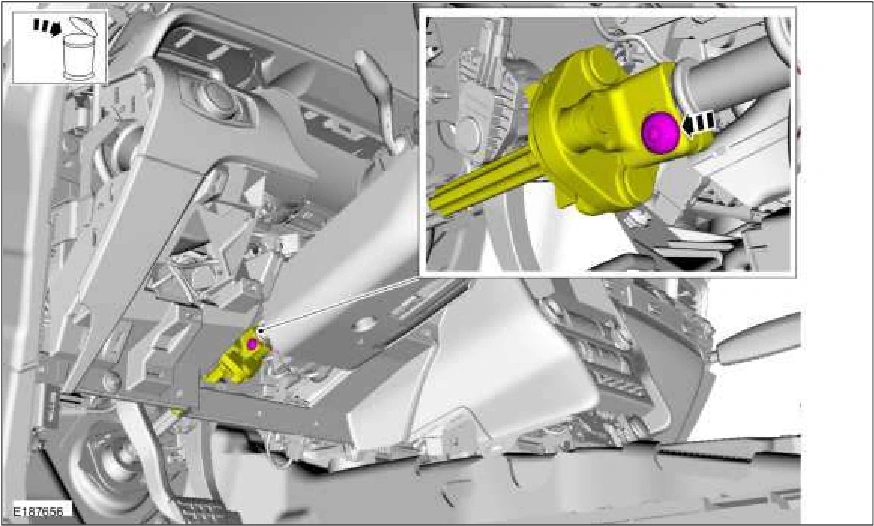

Instrument Panel — original illustration 1, reference 1333Original colors & callouts · Select to enlarge

20. Disconnect the electrical connectors, release the electrical harness retainer(s) and position the electrical harness aside.

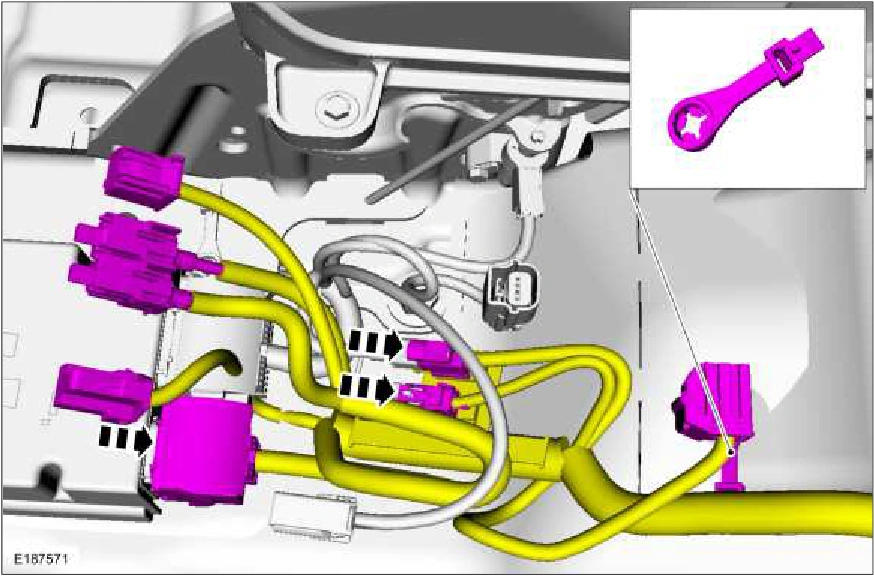

Instrument Panel — original illustration 2, reference 1333Original colors & callouts · Select to enlarge

21. Remove the push pins and remove the RH insulation panel.

Remove the insulation panel ambient light.
