Instrument Panel — 2016 workshop reference 1330

Instrument Panel — original illustration 1, reference 1330Original colors & callouts · Select to enlarge

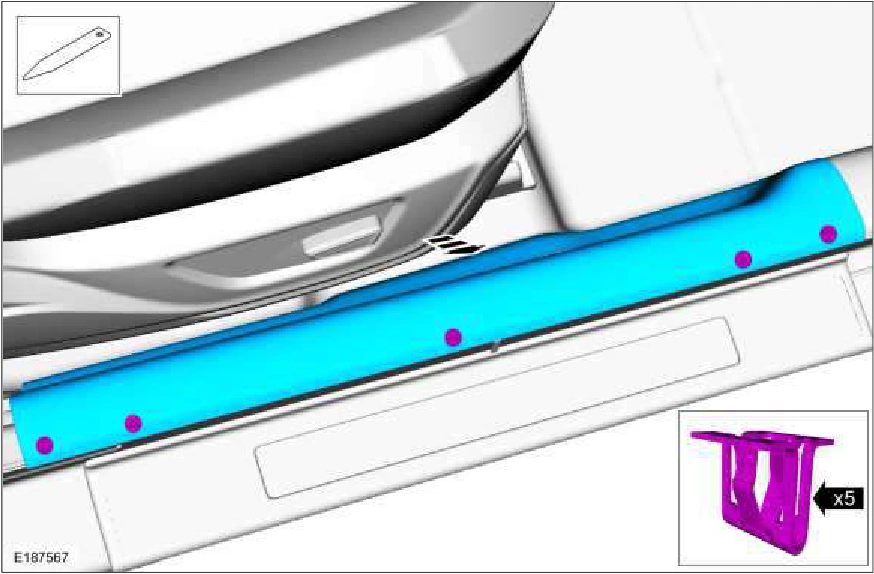

12. Release the clips and remove the RH scuff plate. Use the General Equipment: Interior Trim Remover

Instrument Panel — original illustration 2, reference 1330Original colors & callouts · Select to enlarge

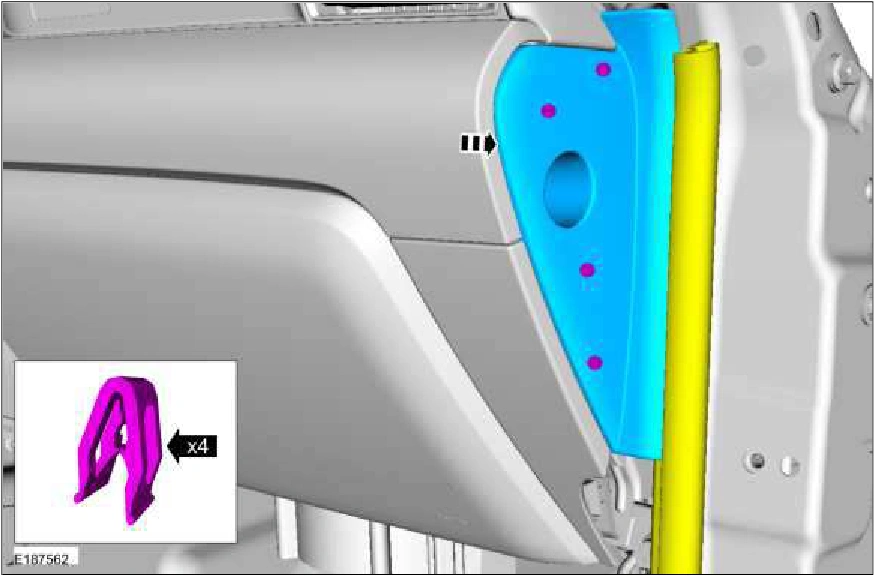

13. Release the clips and remove the lower RH cowl trim panel.

Source reference 1330
