5. Remove the floor console. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).

Vehicles with automatic transmission

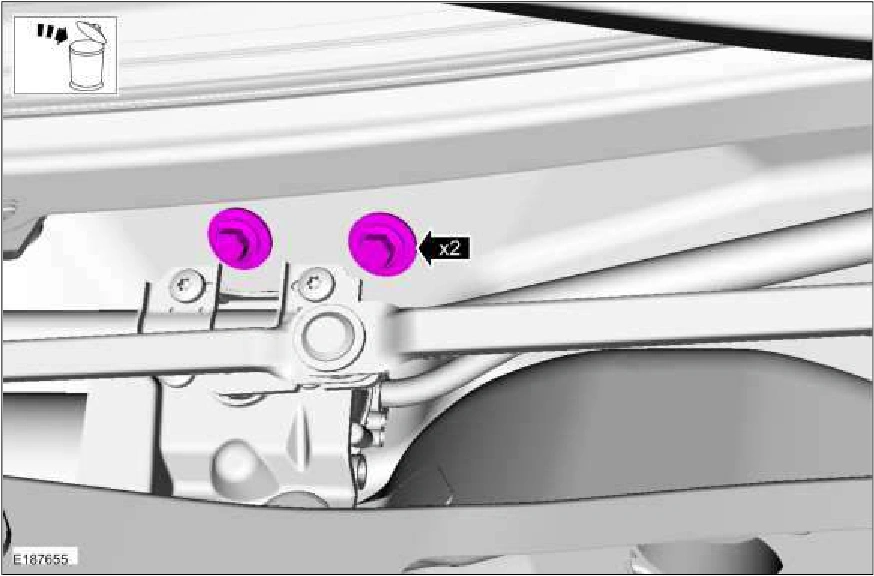

6. Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

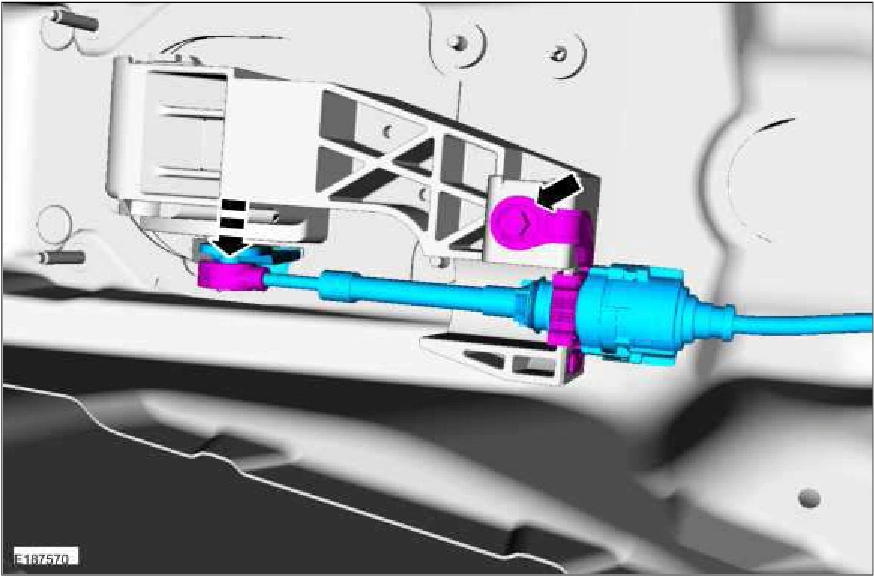

7. Remove the selector lever cable bracket bolt and remove the selector lever cable. Torque : 62 lb.in (7 Nm)

Instrument Panel — original illustration 2, reference 1328Original colors & callouts · Select to enlarge

8. Remove the selector lever assembly. Disconnect the electrical connector.
