Floor Console — 2016 workshop reference 1324

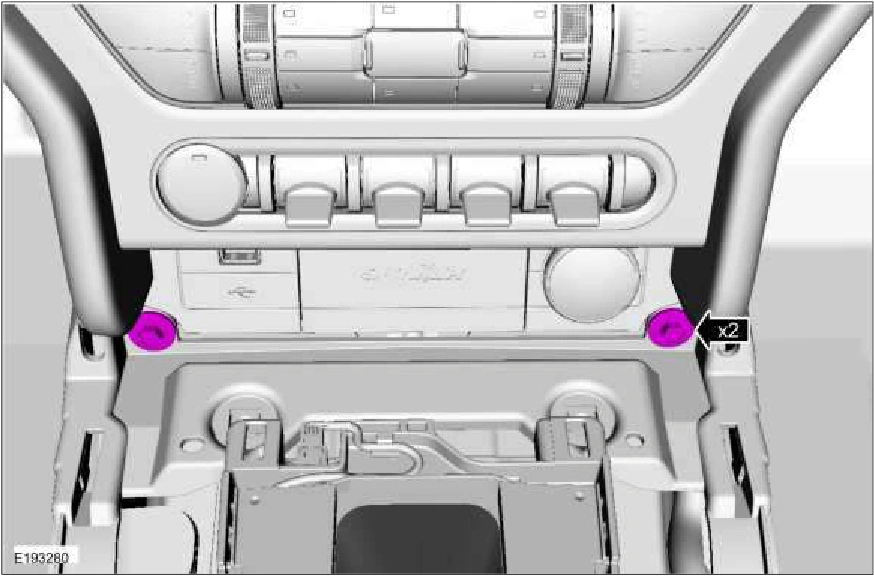

16. Remove the 2 front upper floor console bolts. Torque : 18 lb.in (2 Nm)

Floor Console — original illustration 1, reference 1324Original colors & callouts · Select to enlarge

17. Remove the floor console.

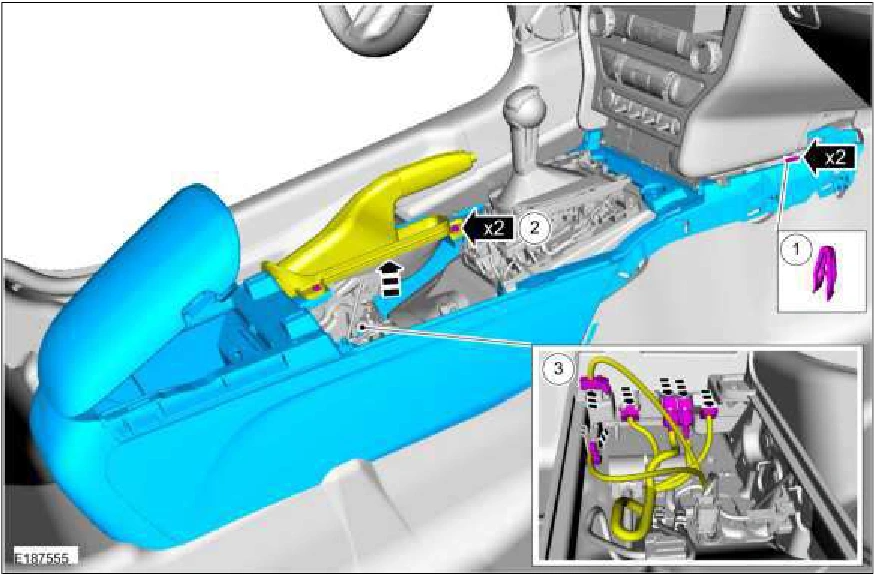

1. On both sides. Release the clips.

2. Remove the screws and position aside the parking brake boot from the console.

3. Disconnect the electrical connectors.

Floor Console — original illustration 2, reference 1324Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 1324
