The Luggage Compartment Lid Passive Entry Feature Is Inoperative
Refer to Wiring Diagrams Cell 117 for schematic and connector information.
Normal Operations and Fault Conditions
REFER to: Handles, Locks, Latches and Entry Systems - System Operation and Component Description (501-14 Handles, Locks, Latches and Entry Systems, Description and Operation).
BCM DTC Fault Trigger Conditions
DTC | Description | Fault Trigger Conditions |
|---|---|---|
B10C7:01 | Interior Trunk Antenna: General Electrical Failure | Sets when the BCM detects a fault from the keyless entry rear antenna input. |
Possible Cause
Wiring, terminals or connectors Keyless entry rear antenna BCM
PINPOINT TEST T : THE LUGGAGE COMPARTMENT LID PASSIVE ENTRY FEATURE IS INOPERATIVE
T1 CHECK THE LUGGAGE COMPARTMENT LID RELEASE SWITCH INPUT
Close the luggage compartment lid. Ignition ON. Unlock the doors using the door lock control switch. Press the luggage compartment lid release button.
Does the luggage compartment lid latch release?
Yes | GO to T2 |
|---|---|
No | GO to Pinpoint Test N |
T2 CHECK THE RKE (REMOTE KEYLESS ENTRY) OPERATION
Ignition OFF. Close the luggage compartment lid. Press the luggage compartment lid release button twice on a valid programmed key.
Does the luggage compartment lid latch release?
Yes | GO to T3 |
|---|---|
No | GO to Pinpoint Test O |
T3 CHECK THE KEYLESS ENTRY REAR ANTENNA

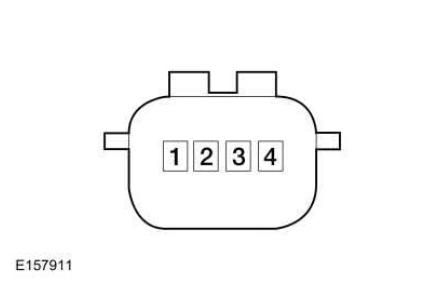

Ignition OFF. Disconnect Keyless Entry Rear Antenna C4378. Measure:
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C4378, pin 1, component side | C4378, pin 2, component side |
