Luggage Compartment Lid Latch - Convertible — 2016 workshop reference 1459

Luggage Compartment Lid Latch - Convertible — original illustration 1, reference 1459Original colors & callouts · Select to enlarge

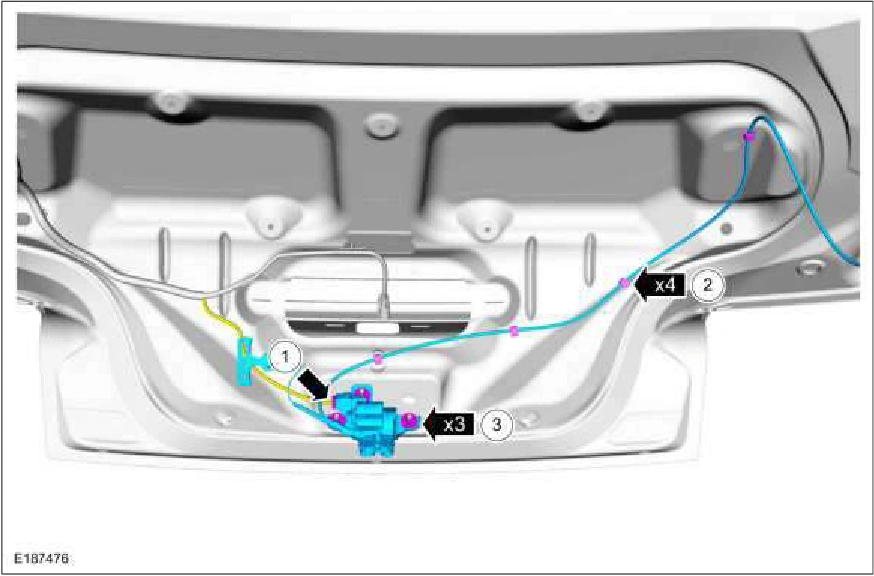

4. Remove the luggage compartment lid latch.

1. Disconnect the electrical connector and position aside the wiring harness.

2. Unlock the luggage compartment lid latch cable from the clips.

3. Remove the nuts and the luggage compartment lid latch. Torque : 62 lb.in (7 Nm)

Luggage Compartment Lid Latch - Convertible — original illustration 2, reference 1459Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.
