Luggage Compartment Lid Latch - Coupe

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the luggage compartment lid trim panel.

1. Remove the retainers.

2. Remove the bump stops and the luggage compartment lid trim panel.

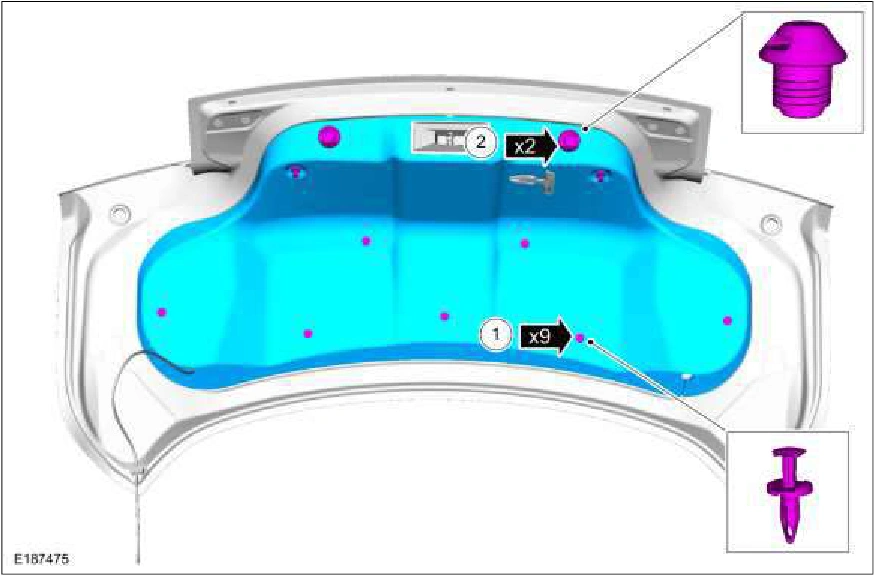

Luggage Compartment Lid Latch - Coupe — original illustration 1, reference 1456Original colors & callouts · Select to enlarge

2. Remove the luggage compartment lid latch.

1. Disconnect the electrical connector and position aside the wiring harness.

2. Remove the nuts and the luggage compartment lid latch. Torque : 62 lb.in (7 Nm)

Source reference 1456
