Keyless Entry Rear Antenna — 2016 workshop reference 1455

Keyless Entry Rear Antenna — original illustration 1, reference 1455Original colors & callouts · Select to enlarge

3. NOTE: Luggage compartment lid removed for clarity.

Remove the keyless entry rear antenna.

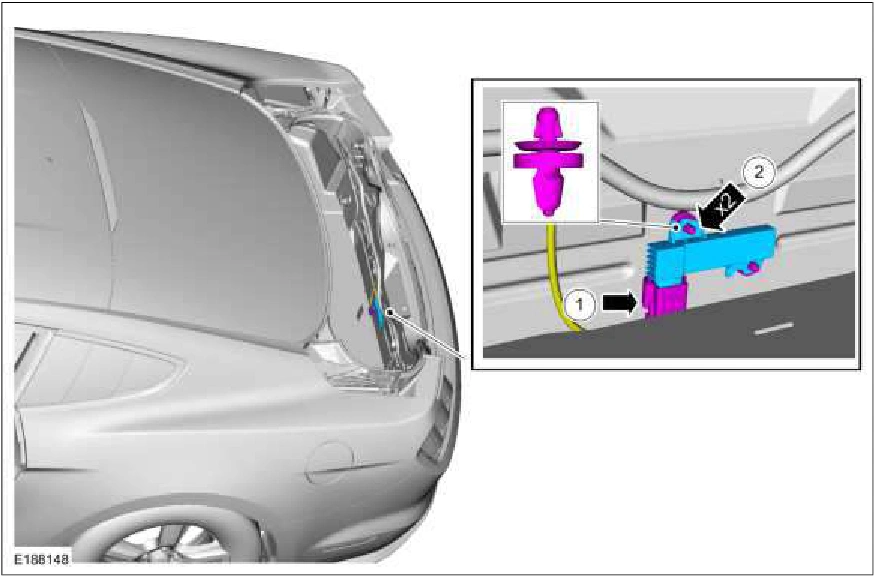

1. Disconnect the keyless entry rear antenna electrical connector.

2. Remove the retainers and the keyless entry rear antenna.

Keyless Entry Rear Antenna — original illustration 2, reference 1455Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.
