501-14 Handles, Locks, Latches and Entry Systems 2016 Mustang

Removal and Installation Procedure revision date: 03/2/2015

Interior Front Door Handle

Removal

NOTE: LHD shown, RHD similar.

NOTE: LH side shown, RH side similar.

1. Remove the front door trim panel. Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

2. Remove the interior front door handle.

1. Release the retaining clips.

2. Remove the interior front door handle.

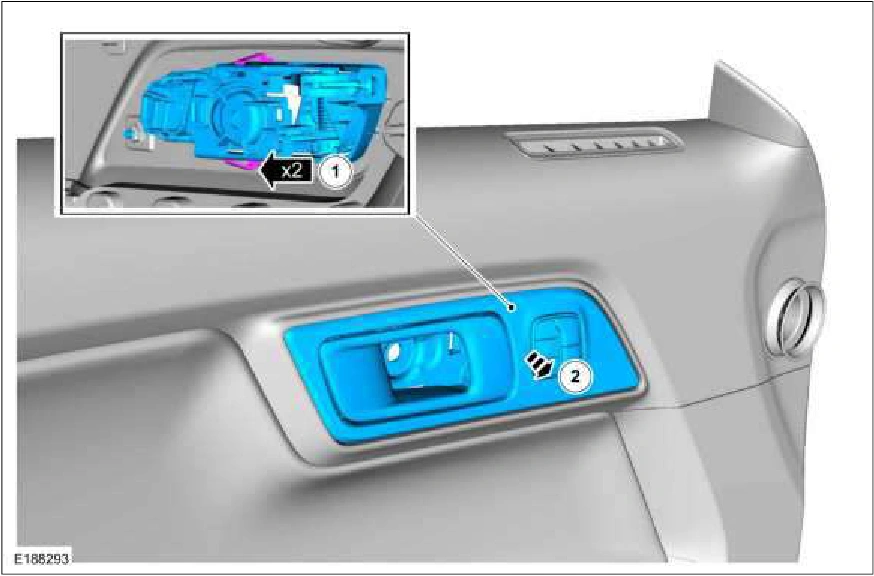

Interior Front Door Handle — original illustration 1, reference 1452Original colors & callouts · Select to enlarge

3. NOTE: This step is only necessary when installing a new component.

Remove the door lock control switch.

1. Release the retaining clips.

2. Remove the door lock control switch.

Source reference 1452
