Hood Latch Release Handle

Removal

NOTE: LHD shown, RHD similar.

1. NOTE: Insert a 10 mm 1/4 inch drive socket to release the clips.

Remove the hood latch release handle.

1. Remove the hood latch release handle access cover.

2. Release the clips releasing the hood latch release handle.

3. Remove the hood latch release handle.

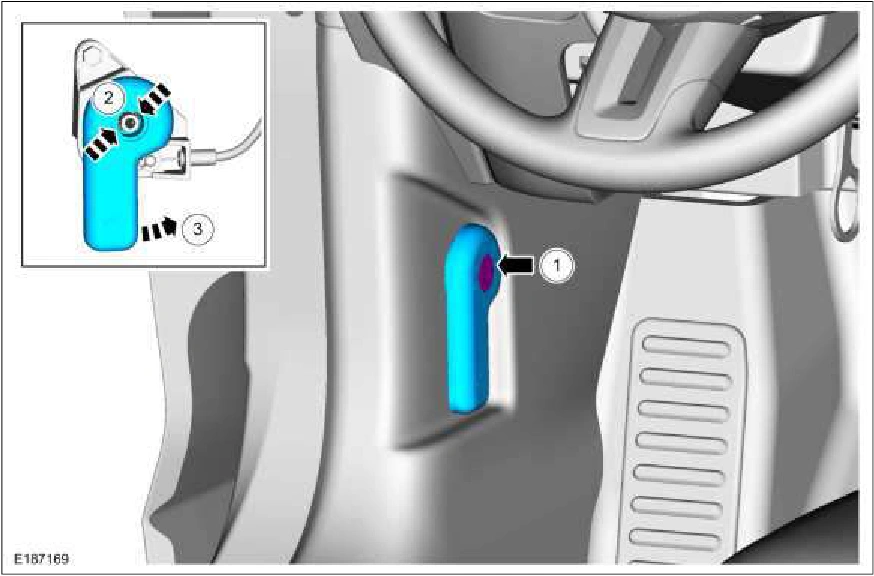

Hood Latch Release Handle — original illustration 1, reference 1451Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.
