Hood Latch Release Cable — 2016 workshop reference 1450

Hood Latch Release Cable — original illustration 1, reference 1450Original colors & callouts · Select to enlarge

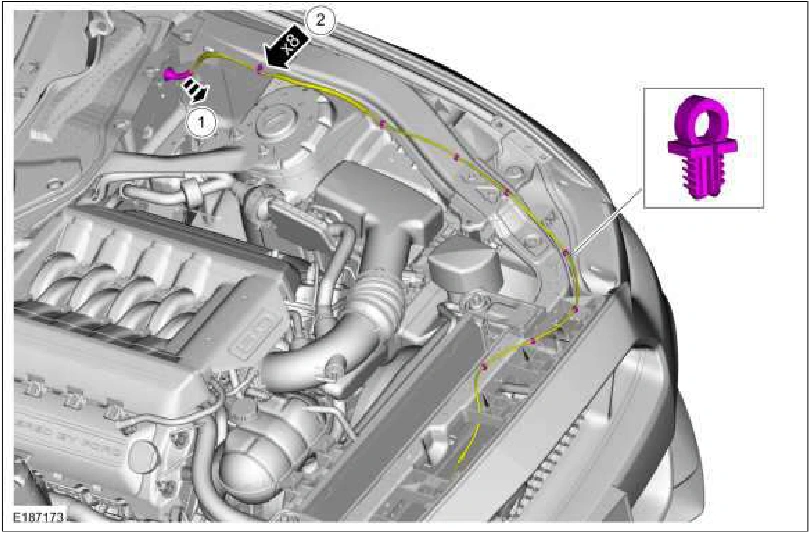

9. Remove the hood latch release cable.

1. Release the hood latch release cable from the routing bracket.

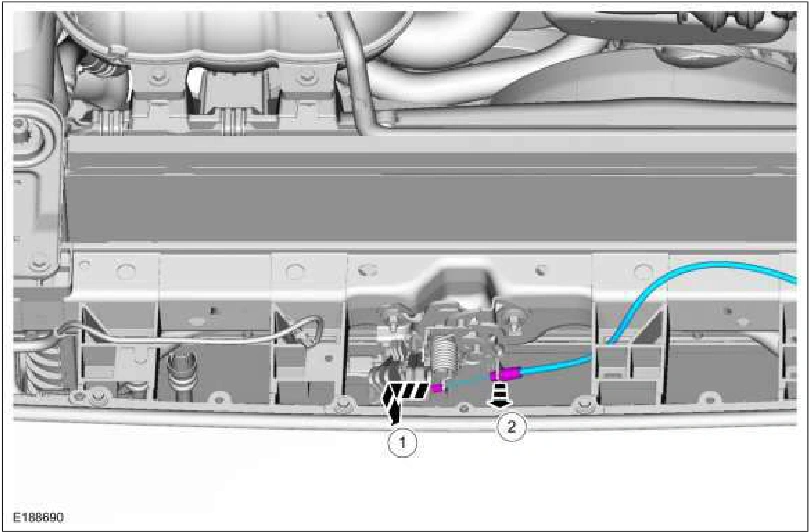

2. Disconnect the cable end and remove the hood latch release cable.

Hood Latch Release Cable — original illustration 2, reference 1450Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.
