2016 workshop · Body & Paint

Hood Latch Release Cable

501-14 Handles, Locks, Latches and Entry Systems

2016 MustangReference 1,447 / 6,619HTML edition
← Chapter contentsProcedure contents
Hood Latch Release Cable — original illustration 1, reference 1447Original colors & callouts · Select to enlarge

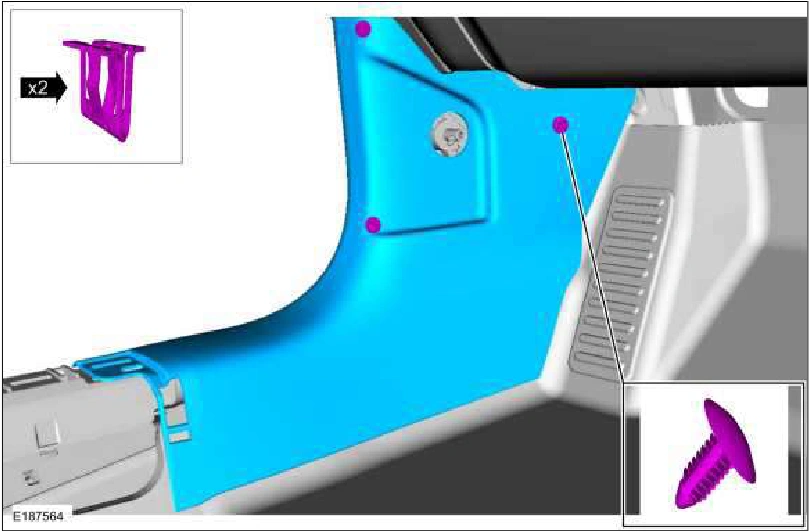

4. Release the clips and remove the LH cowl trim panel.

Hood Latch Release Cable — original illustration 2, reference 1447Original colors & callouts · Select to enlarge

5. Remove the hood latch release.

1. Disconnect the hood latch release cable.

2. Remove the bolts and the hood latch release.
