Hood Latch Release Cable

501-14 Handles, Locks, Latches and Entry Systems 2016 Mustang

Removal and Installation Procedure revision date: 10/28/2015

Base Part Number: 16916

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: LHD shown, RHD similar.

1. If equipped, remove DSP. Refer to: Audio Digital Signal Processing (DSP) Module (415-00B Information and Entertainment System - General Information - Vehicles With: Touchscreen Display, Removal and Installation).

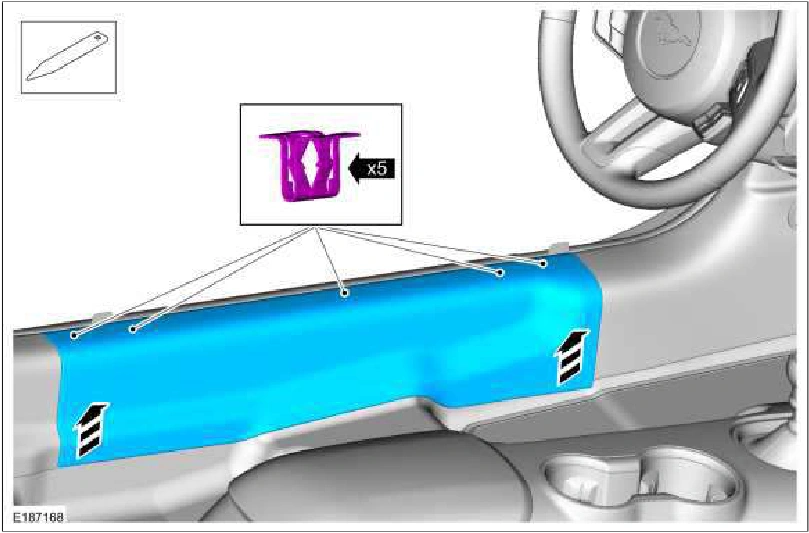

2. Remove the driver door scuff plate. Use the General Equipment: Interior Trim Remover

Hood Latch Release Cable — original illustration 1, reference 1446Original colors & callouts · Select to enlarge

3. NOTE: Insert a 10mm 1/4 inch drive socket to release the clips.

Remove the hood latch release handle.

1. Remove the hood latch release handle access cover.

2. Release the clips releasing the hood latch release handle.

3. Remove the hood latch release handle.

Source reference 1446
