Hood Latch — 2016 workshop reference 1444

Hood Latch — original illustration 1, reference 1444Original colors & callouts · Select to enlarge

Installation

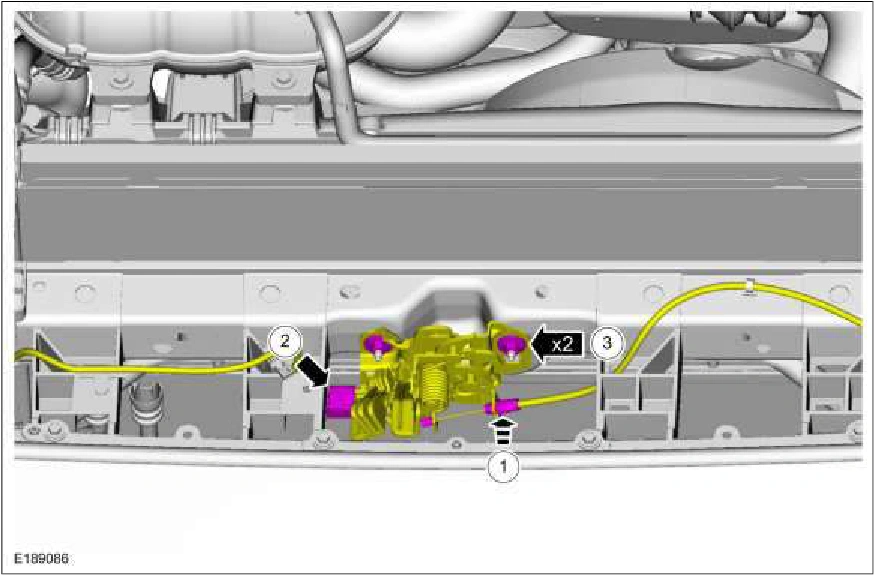

1. Install the hood latch.

1. Install the hood latch and connect the hood latch release cable.

2. Connect the hood ajar switch electrical connector.

3. Finger tighten the nuts at this stage.

Hood Latch — original illustration 2, reference 1444Original colors & callouts · Select to enlarge

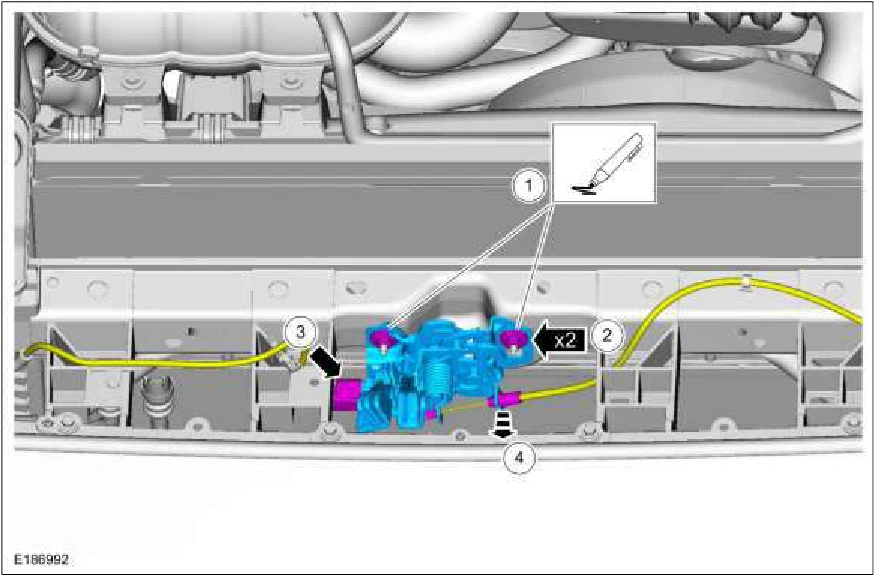

2. Position the hood latch to the marked reference points and tighten the hood latch nuts. Torque : 80 lb.in (9 Nm)
