Front Door Latch

501-14 Handles, Locks, Latches and Entry Systems

2016 MustangReference 1,441 / 6,619HTML edition
← Chapter contentsProcedure contents

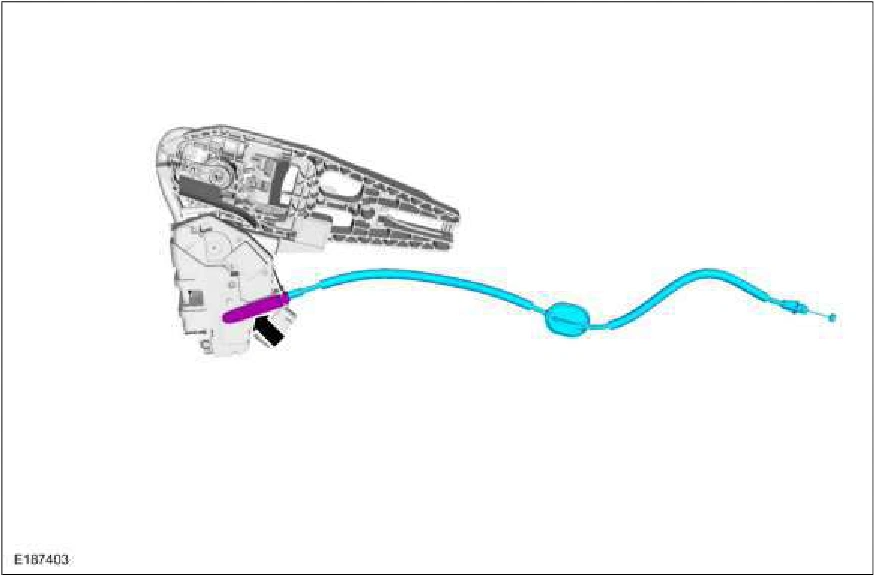

Front Door Latch — original illustration 1, reference 1441Original colors & callouts · Select to enlarge

10. NOTE: This step is only necessary when installing a new component.

Remove the exterior front door handle reinforcement.

1. Tighten the screw releasing the tension on the cable.

2. Detach and position aside the cable from the exterior front door handle reinforcement.

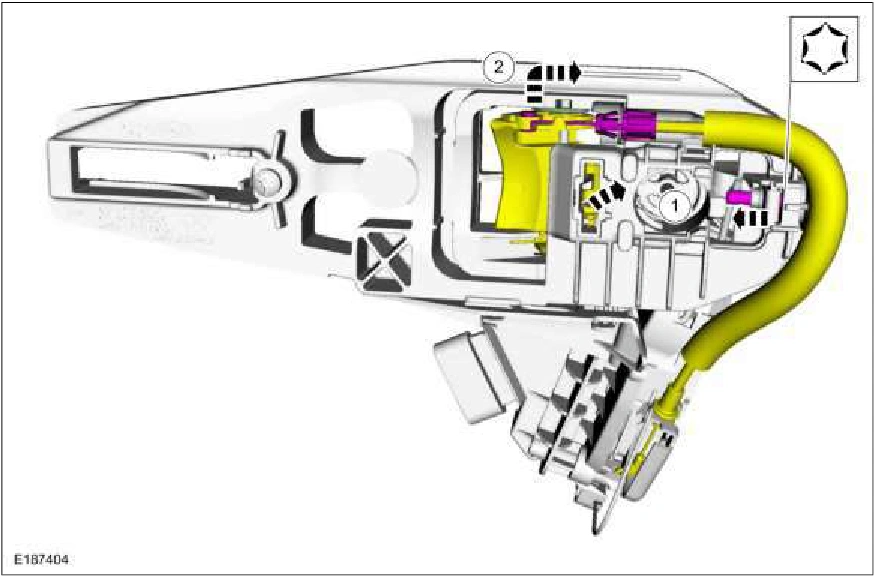

Front Door Latch — original illustration 2, reference 1441Original colors & callouts · Select to enlarge

11. NOTE: This step is only necessary when installing a new component.

Remove the front door latch.

1. Remove the screws.

2. Detach and position aside the cable from the front door latch.

3. Detach the rod and remove the front door latch.

Source reference 1441
