Front Door Latch

501-14 Handles, Locks, Latches and Entry Systems 2016 Mustang

Removal and Installation Procedure revision date: 01/9/2016

Base Part Number: 21812

Removal

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the front door window glass. Refer to: Front Door Window Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).

2. Remove the exterior front door handle. Refer to: Exterior Front Door Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

3. Remove the aft front door glass run. Refer to: Front Door Glass Run and Bracket (501-11 Glass, Frames and Mechanisms, Removal and Installation).

4. Position aside the front door window regulator.

1. Remove the retainers.

2. Position aside the rear portion of the front door window regulator.

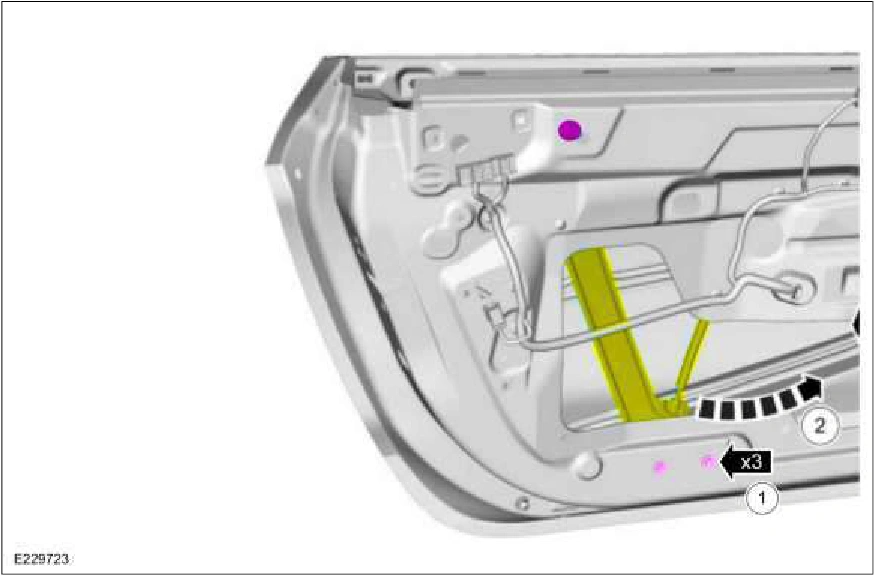

Front Door Latch — original illustration 1, reference 1438Original colors & callouts · Select to enlarge

5. Remove the exterior door handle reinforcement screw.

Source reference 1438
