Exterior Front Door Handle Reinforcement

501-14 Handles, Locks, Latches and Entry Systems 2016 Mustang

Removal and Installation Procedure revision date: 03/2/2015

Removal

NOTE: LH side shown, RH side similar.

1. Remove the front door latch. Refer to: Front Door Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

2. NOTE: This step only necessary when installing a new component.

Remove the exterior front door handle reinforcement.

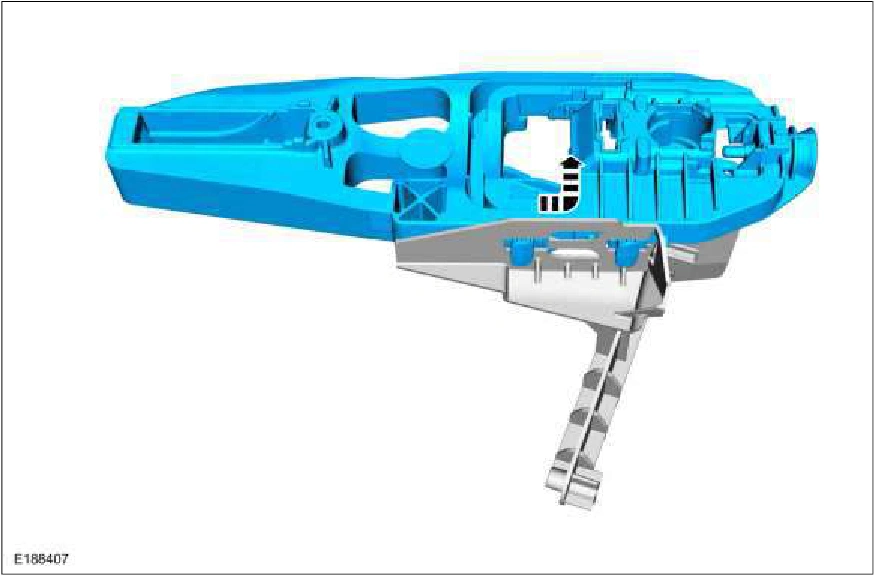

Exterior Front Door Handle Reinforcement — original illustration 1, reference 1437Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 1437
