Exterior Front Door Handle

501-14 Handles, Locks, Latches and Entry Systems

2016 MustangReference 1,435 / 6,619HTML edition

← Chapter contents Procedure contents

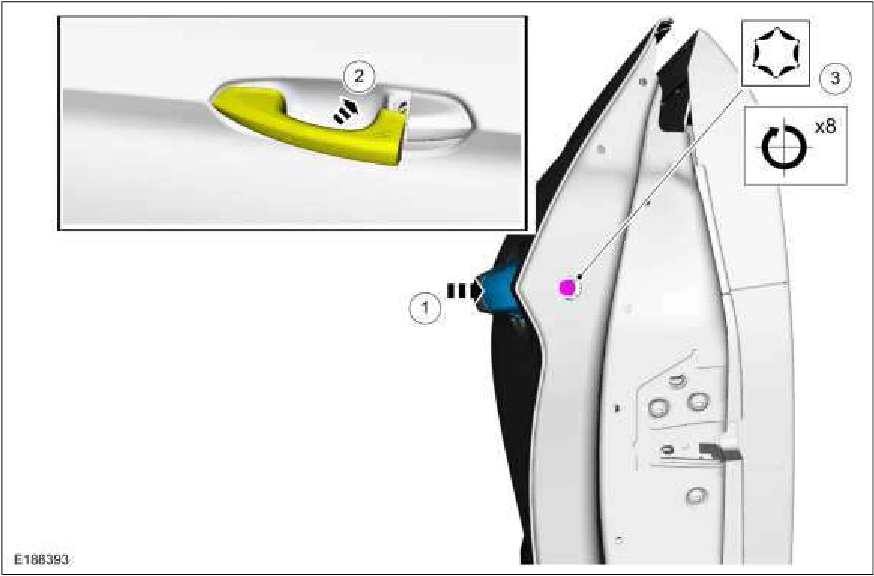

Exterior Front Door Handle — original illustration 1, reference 1435Original colors & callouts · Select to enlarge

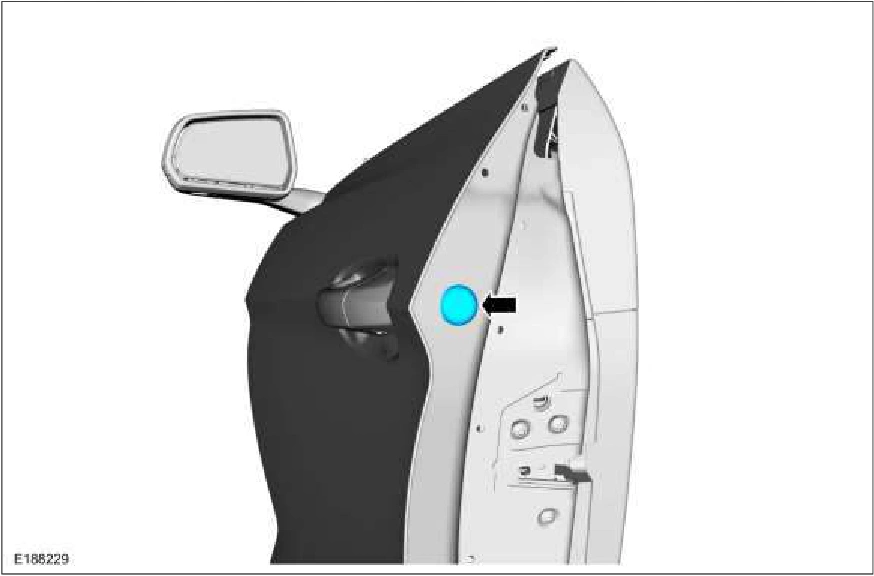

3. Install the grommet.

Exterior Front Door Handle — original illustration 2, reference 1435Original colors & callouts · Select to enlarge

4. Install the front door lower watershield.
