Exterior Front Door Handle

501-14 Handles, Locks, Latches and Entry Systems 2016 Mustang

Removal and Installation Procedure revision date: 03/2/2015

Base Part Number: 22404

Removal

NOTE: LHD shown, RHD similar.

NOTE: LH side shown, RH side similar.

1. Remove the front door trim panel. Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

2. Remove the front door lower watershield.

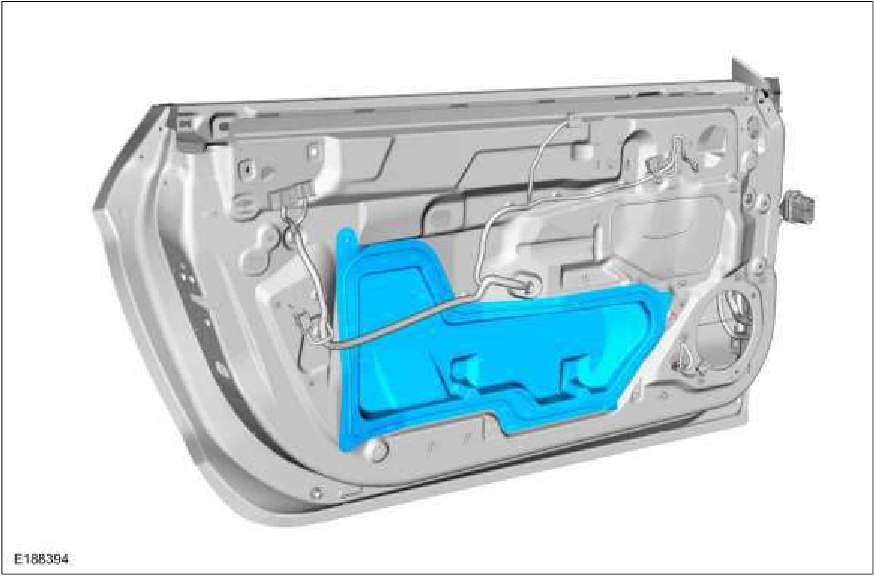

Exterior Front Door Handle — original illustration 1, reference 1432Original colors & callouts · Select to enlarge

3. Remove the grommet.

Source reference 1432
