Door Lock Control Switch

501-14 Handles, Locks, Latches and Entry Systems 2016 Mustang

Removal and Installation Procedure revision date: 03/2/2015

Removal

NOTE: LHD shown, RHD similar.

NOTE: LH side shown, RH side similar.

1. Remove the front door trim panel. Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

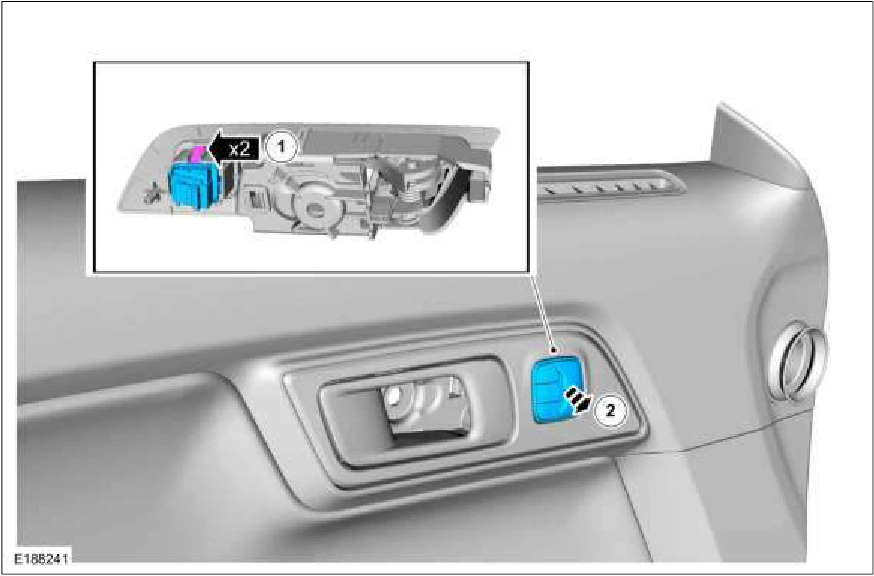

2. Remove the door lock control switch.

1. Release the retaining clips.

2. Remove the door lock control switch.

Door Lock Control Switch — original illustration 1, reference 1429Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 1429
