501-14 Handles, Locks, Latches and Entry Systems 2016 Mustang

Removal and Installation Procedure revision date: 03/2/2015

Door Lock Cylinder

Removal

NOTE: LHD shown, RHD similar.

NOTE: Removal steps in this procedure may contain installation details.

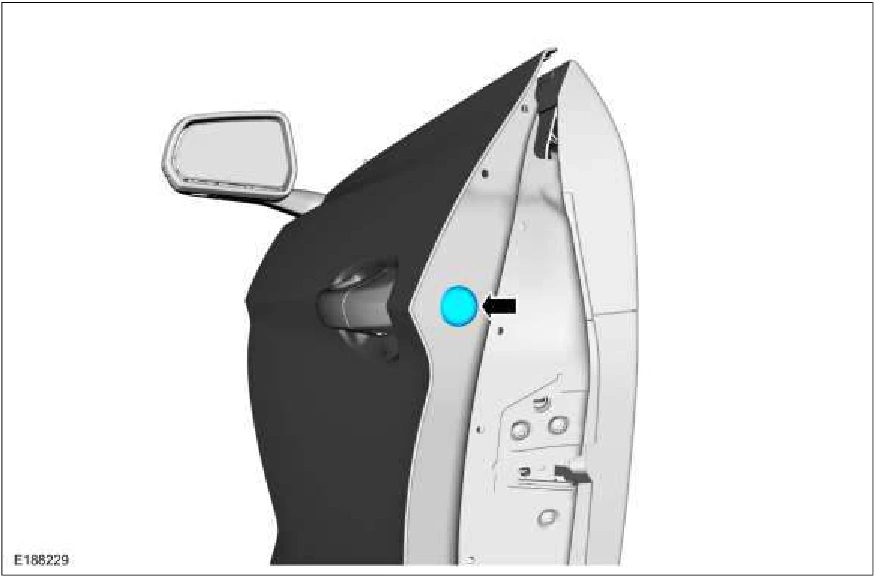

1. Remove the grommet.

Door Lock Cylinder — original illustration 1, reference 1430Original colors & callouts · Select to enlarge

2. Remove the lock cylinder door handle cover.

1. Turn the release screw 8 turns. The handle will release around 6 to 6.5 turns. You must continue to the full 8 revolutions for installation. Torque : 62 lb.in (7 Nm)

2. Remove the lock cylinder and the door handle cover assembly from the front door.
