Luggage Compartment Lid Release Switch

501-14 Handles, Locks, Latches and Entry Systems 2016 Mustang

Removal and Installation Procedure revision date: 03/2/2015

Removal

1. Remove the luggage compartment lid release switch.

1. Release the luggage compartment lid release switch from the bumper cover.

2. Disconnect the electrical connector and remove the luggage compartment lid release switch.

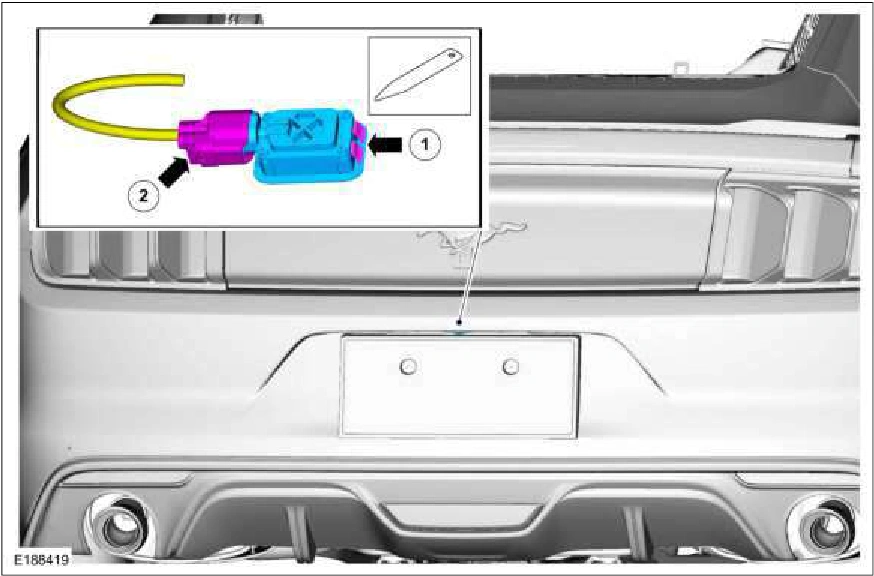

Luggage Compartment Lid Release Switch — original illustration 1, reference 1428Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 1428
