Luggage Compartment Lid Lock Cylinder - Convertible — 2016 workshop reference 1426

501-14 Handles, Locks, Latches and Entry Systems 2016 Mustang

Removal and Installation Procedure revision date: 03/2/2015

Luggage Compartment Lid Lock Cylinder - Convertible

Removal

1. Remove the rear seat backrest. Refer to: Rear Seat Backrest - Convertible (501-10B Rear Seats, Removal and Installation).

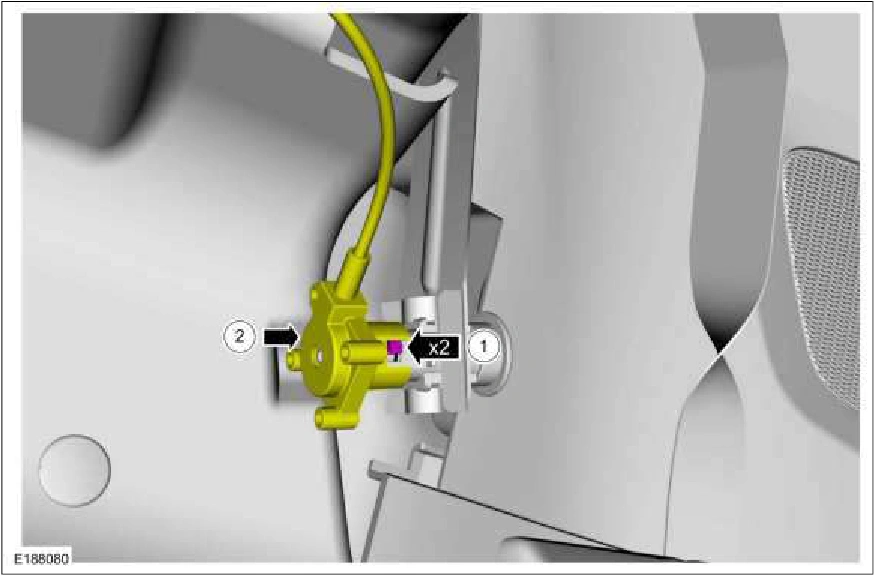

2. Detach the luggage compartment lid latch cable.

1. Release the luggage compartment lid lock cylinder retaining tabs.

2. Detach the luggage compartment lid latch cable.

Luggage Compartment Lid Lock Cylinder - Convertible — original illustration 1, reference 1426Original colors & callouts · Select to enlarge

3. Remove the luggage compartment lid lock cylinder.

1. Remove the luggage compartment lid lock cylinder retaining clip.

2. Remove the luggage compartment lid lock cylinder.
