Exterior Front Door Handle — 2016 workshop reference 1433

Exterior Front Door Handle — original illustration 1, reference 1433Original colors & callouts · Select to enlarge

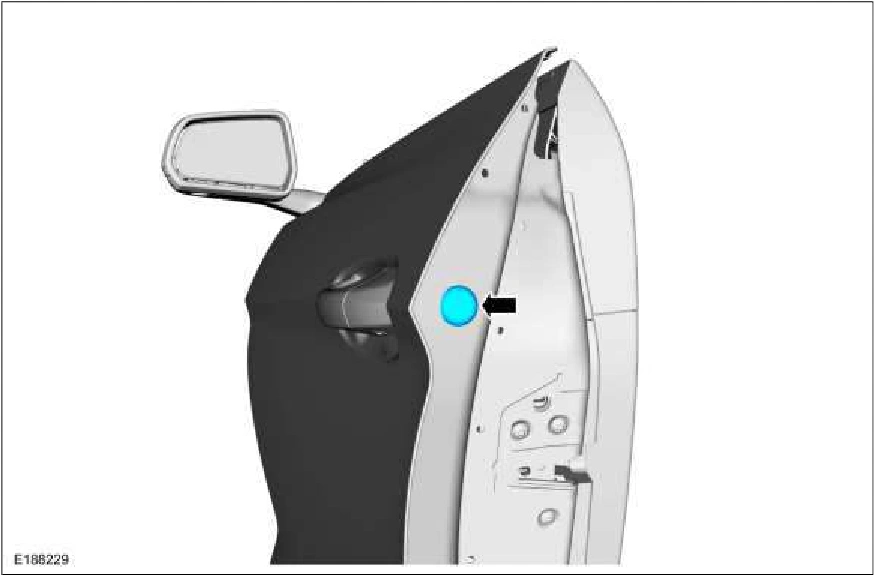

4. Remove the lock cylinder door handle cover.

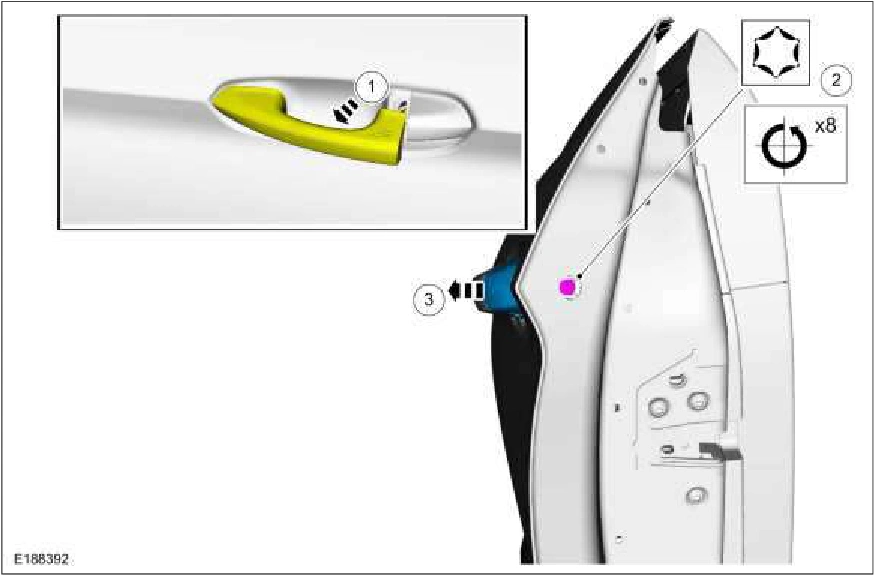

1. Hold the front door handle open.

2. Turn the release screw 8 turns. The handle will release around 6 to 6.5 turns. You must continue to the full 8 revolutions for installation.

3. Remove the lock cylinder and door handle cover assembly from front door.

Exterior Front Door Handle — original illustration 2, reference 1433Original colors & callouts · Select to enlarge

5. NOTICE: Do not pull the door handle out of the door too far without disconnecting the handle from

the connector. Damage to the harness will occur.

Disconnect the exterior front door handle connector from the handle from inside the door and remove the exterior front door handle.

Source reference 1433

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
