Front Door Latch — 2016 workshop reference 1440

Front Door Latch — original illustration 1, reference 1440Original colors & callouts · Select to enlarge

8. Remove the front door latch.

1. Route the interior front door handle cable through the door.

2. Remove the front door latch.

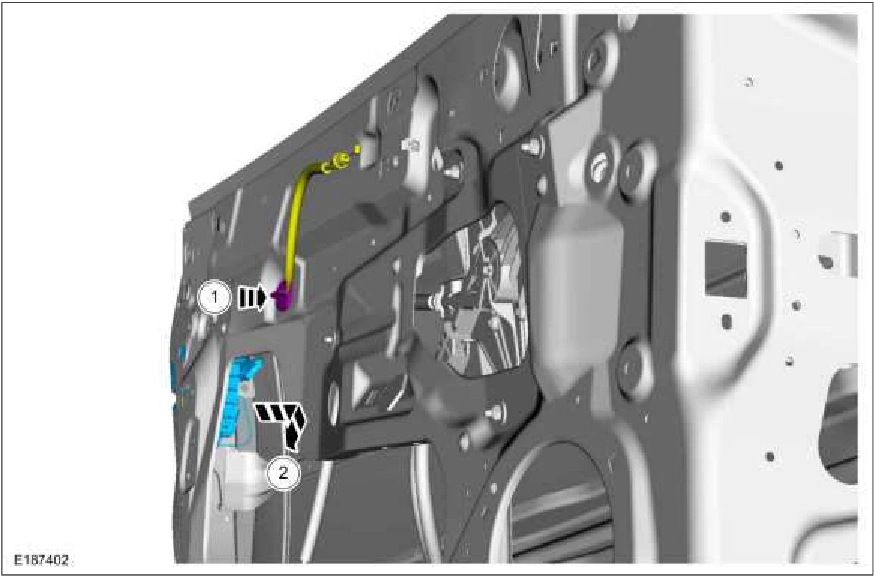

Front Door Latch — original illustration 2, reference 1440Original colors & callouts · Select to enlarge

9. NOTE: This step is only necessary when installing a new component.

Remove the interior front door handle cable from the front door latch.

Source reference 1440

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
