Front Door Latch — 2016 workshop reference 1439

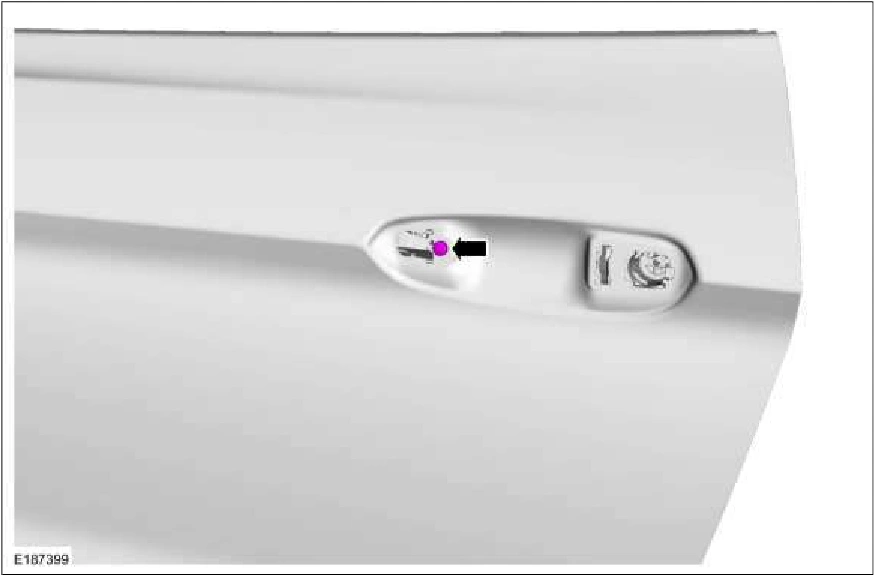

Front Door Latch — original illustration 1, reference 1439Original colors & callouts · Select to enlarge

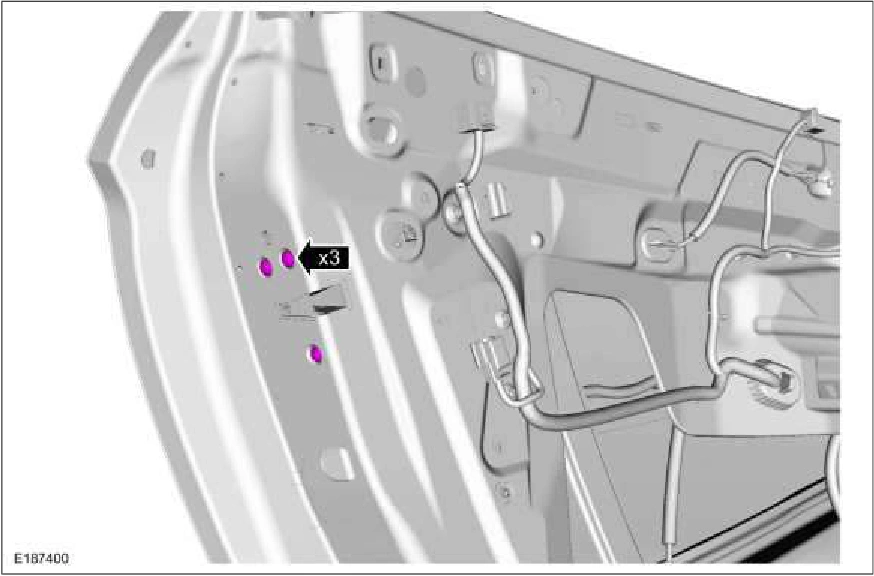

6. Remove the front door latch bolts. Torque : 71 lb.in (8 Nm)

Front Door Latch — original illustration 2, reference 1439Original colors & callouts · Select to enlarge

7. Disconnect the electrical connector.
