Hood Latch Release Cable

501-14 Handles, Locks, Latches and Entry Systems

2016 MustangReference 1,448 / 6,619HTML edition

← Chapter contents Procedure contents

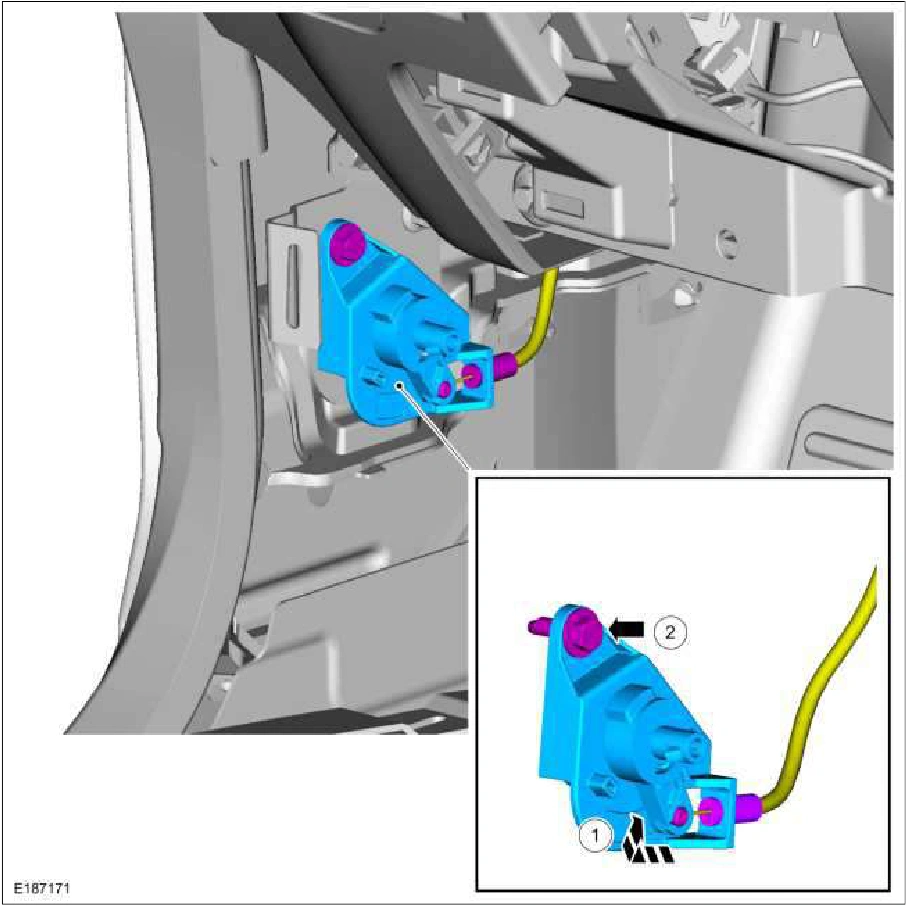

Hood Latch Release Cable — original illustration 1, reference 1448Original colors & callouts · Select to enlarge

6. Route the hood latch release cable through the cowl.

1. Release the routing cable clips.

2. Route the hood latch release cable through the cowl.
