501-14 Handles, Locks, Latches and Entry Systems 2016 Mustang

Removal and Installation Procedure revision date: 03/2/2015

Luggage Compartment Lid Latch - Convertible

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the luggage compartment lid lock cylinder. Refer to: Luggage Compartment Lid Lock Cylinder - Convertible (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

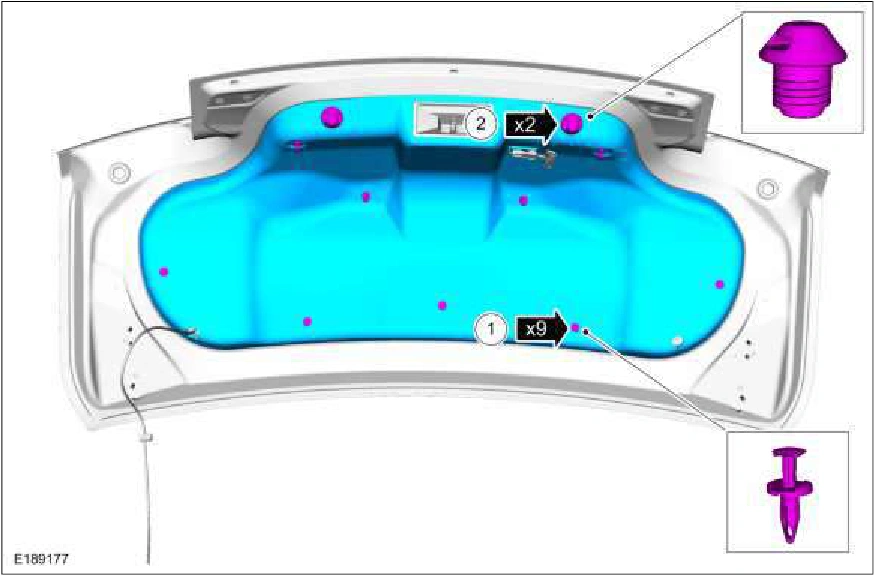

2. Remove the luggage compartment lid trim panel.

1. Remove the retainers.

2. Remove the bump stops and the luggage compartment lid trim panel.

Luggage Compartment Lid Latch - Convertible — original illustration 1, reference 1458Original colors & callouts · Select to enlarge

3. Route the luggage compartment lid latch cable.

1. Remove the retainer.

2. Position aside the load compartment trim panel.

3. Remove the retainers.

4. Route the luggage compartment lid latch cable through the load compartment trim panel.
