Washer Hose Coupling

501-16 Wipers and Washers 2016 Mustang

General Procedures Procedure revision date: 04/24/2012

Disconnect

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in

section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

2. NOTICE: To prevent damage to the coupler, do not use hand tools to disconnect /connect the

C-lock.

NOTE: Do not remove the lock ring from the C-lock coupler.

NOTE: Hold the female side of the coupler at the hose connection to prevent the coupler from rotating internally.

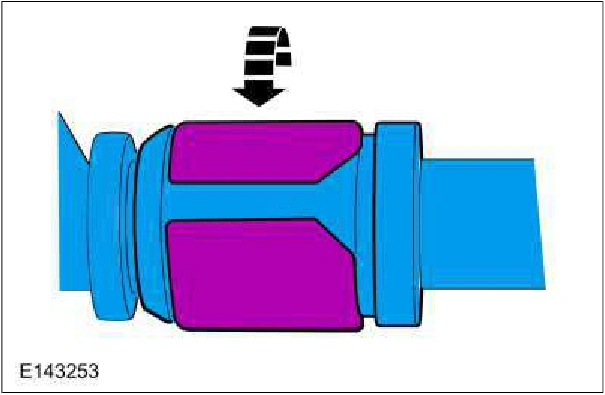

Gently twist the lock ring until it has rotated approximately 90 degrees.

Washer Hose Coupling — original illustration 1, reference 1495Original colors & callouts · Select to enlarge

3. NOTICE: The female side of the C-lock coupler contains an o-ring seal. Use care not to lose the

o-ring.

Slide the C-lock coupler apart from the component fitting.

Source reference 1495
