Washer Hose Coupling — 2016 workshop reference 1496

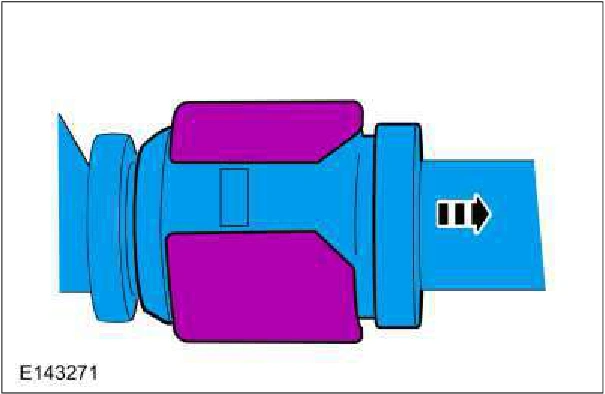

Washer Hose Coupling — original illustration 1, reference 1496Original colors & callouts · Select to enlarge

4. NOTICE: Do not leave the lock ring in the unlocked position. This will weaken the lock ring and

prevent it from correctly locking in place when reassembled, resulting in a leak.

Rotate the lock ring back to the original locked position.

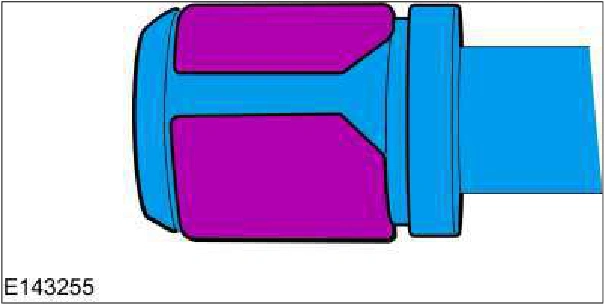

Washer Hose Coupling — original illustration 2, reference 1496Original colors & callouts · Select to enlarge

5. To connect, verify the C-lock coupler lock ring is in the locked position.

6. NOTE: The lock ring flexes open slightly to allow the male fitting to enter the C-lock coupler.

NOTE: The lock ring can be heard as it snaps into the lock position.

Insert the male fitting into the C-lock coupler.

7. Gently pull on the C-lock coupler to verify it is seated correctly.
