Rain Sensor

501-16 Wipers and Washers 2016 Mustang

Removal and Installation Procedure revision date: 08/7/2015

Materials

Name	Specification
Motorcraft® Ultra-Clear Spray Glass Cleaner (U.S.) ZC-23 (U.S.)	ESR-M14P5-A

Removal

NOTE: LHD shown, RHD similar.

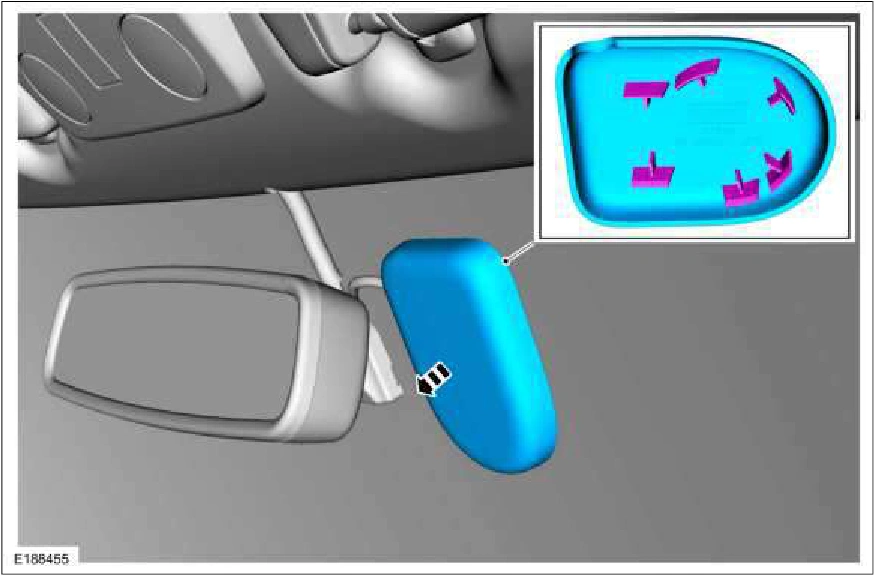

1. Remove the rain sensor cover.

Rain Sensor — original illustration 1, reference 1499Original colors & callouts · Select to enlarge

2. Disconnect the rain sensor electrical connector.

Source reference 1499
