Rain Sensor — 2016 workshop reference 1501

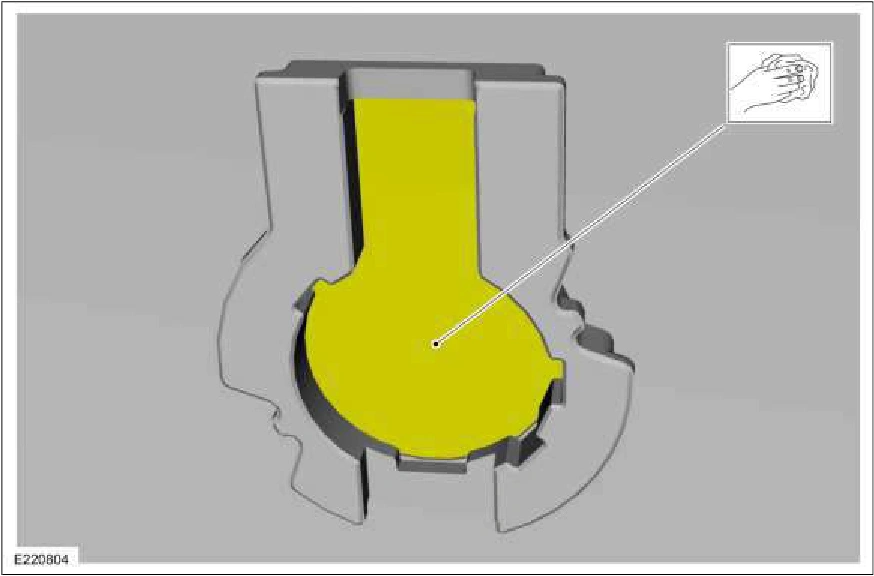

Rain Sensor — original illustration 1, reference 1501Original colors & callouts · Select to enlarge

2. NOTE: If the rain sensor gel pack is damaged, install a new rain sensor.

Inspect the rain sensor gel pack for damage.

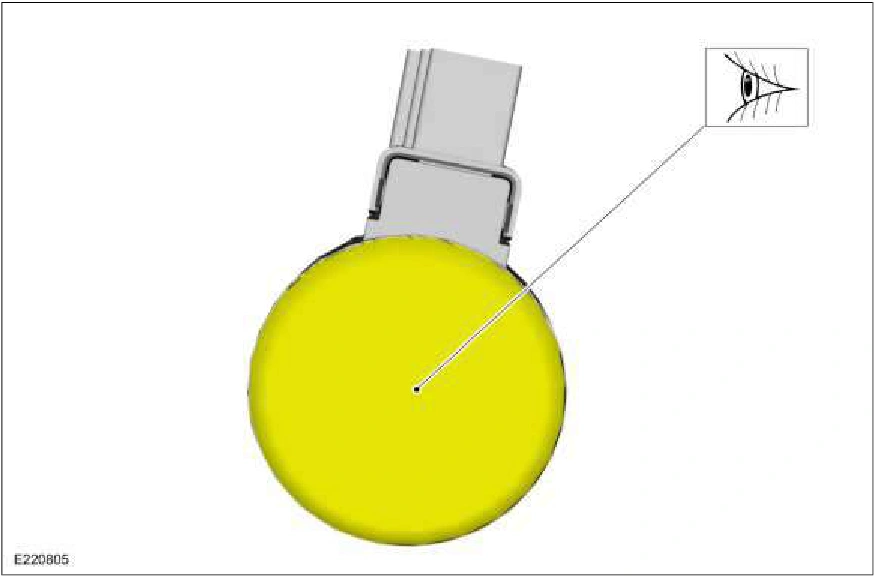

Rain Sensor — original illustration 2, reference 1501Original colors & callouts · Select to enlarge

3. Install the rain sensor.

1. Place the rain sensor in the mounting bracket.

2. Install the rain sensor retaining clip.

Source reference 1501
