Windshield Washer Pump — 2016 workshop reference 1504

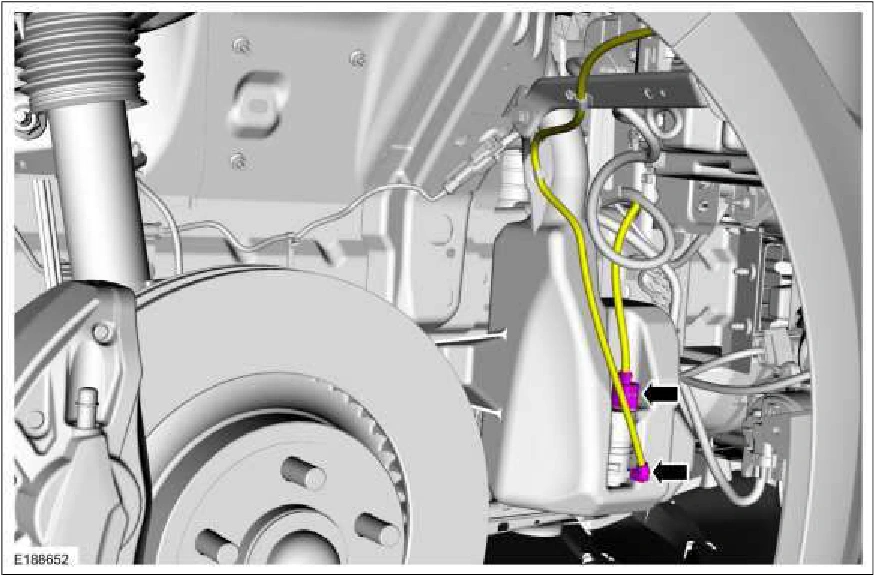

Windshield Washer Pump — original illustration 1, reference 1504Original colors & callouts · Select to enlarge

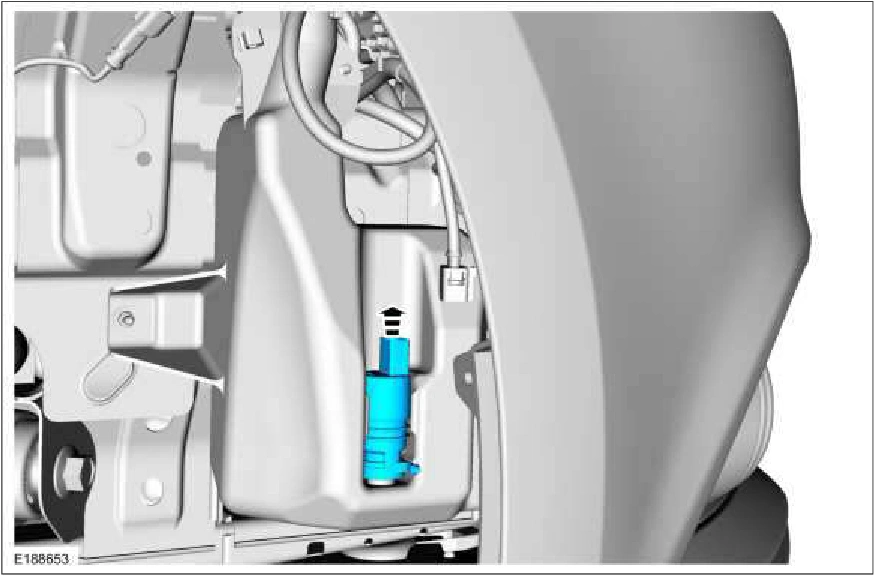

4. Remove the windshield washer pump.

Windshield Washer Pump — original illustration 2, reference 1504Original colors & callouts · Select to enlarge

Installation

NOTICE: Do not operate the washer pump prior to filling the windshield washer reservoir. Failure to follow this instruction may result in premature pump failure.

1. To install, reverse the removal procedure. Material : Motorcraft® Premium Windshield Wash Concentrate with Bitterant (U.S.) / ZC-32-B2 (U.S.) (WSS-M14P19-A)
